Drivetrain entities created with Body To DT can be assembled in the Assembly tab.

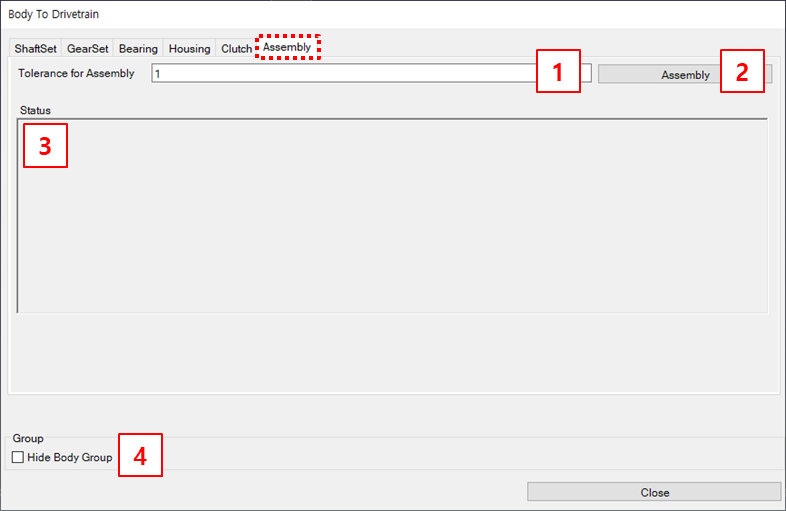

Figure 14.38: Assembly tab parameters for Body To DT
| Parameter | Description |
| 1. Tolerance for Assembly | Use to set the tolerance for assembly. |
| 2. Assembly |
Use to assemble Drivetrain entities created by Body To DT. Body To DT create all of entity for the assembly automatically. |
| 3. Status | Use to show the assembly result. |
| 4. Hide Body Group | Use to hide 3D CAD used in Body To DT collectively. |
