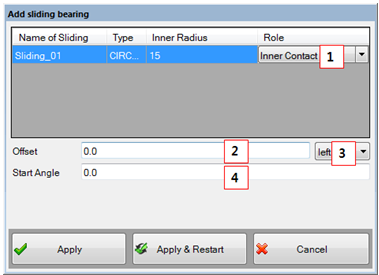

Figure 14.62: Parameters in the Add sliding bearing to Shaft Set dialog
| Parameter | Description | Dimension |
| 1. Role | Use to set the role of sliding bearing. When the "Inner Contact" is selected, the shaft will be contacted to the sliding bearing. | N/A |
| 2. Offset | Use to set the offset which is a distance from the starting position of the Shaft Set. When "shaft" option is used, this value is available. | Length |
| 3. left/middle/right | Use to select the reference position for the offset. When the "left" option is used, the left side of the bearing is attached at the offset point. | N/A |
| 4. Start Angle | Use to set the initial rotation of the sliding bearing. If the value is defined, the sliding bearing will be rotated about the rotating axis of the shaft. | N/A |
