Figure 14.63: Add a power load to a Shaft Set

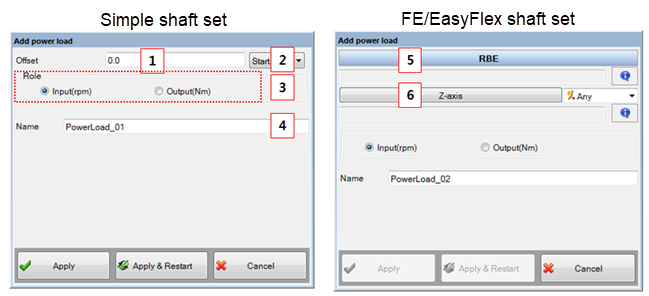

Figure 14.64: Parameters in the Add power load to Shaft Set dialog

Parameter	Description	Dimension
1. Offset	Use to set the offset which is a distance from the reference side of the Shaft Set.	N/A
2. Start/End	Use to set the reference side as follows.	N/A
3. Role	Use to set the power load role. This parameter is used to calculate the power flow in assembly manager. When the "Input" is selected, the Shaft Set will have a role as the input shaft.	N/A
4. Name	Use to set the name of power load.	N/A
5. RBE	Use to select a RBE for the power load. This option is available on FE/EasyFlex Shaft Set.	N/A
6. Z-axis	Use to define the shaft rotating axis. This option is available on FE/EasyFlex Shaft Set.	N/A
