14.3.5.6. Add Point Load

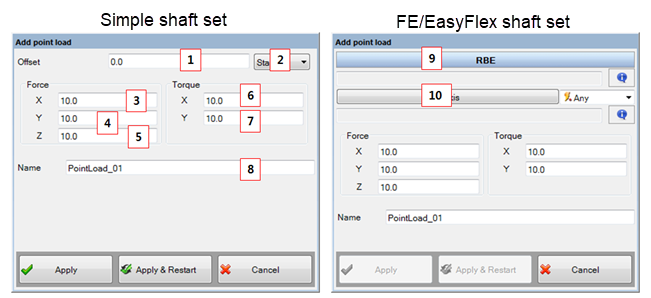

Figure 14.65: Add a point load to a Shaft Set

Add a point load to a Shaft Set

Figure 14.66: Parameters in the Add point load to Shaft Set dialog

ParameterDescriptionDimension
1. OffsetUse to set the offset which is a distance from the reference side of the Shaft Set.Length
2. Reference side

Use to set the reference side as follows.

Parameters in the Add point load to Shaft Set dialog

N/A
3. Force XUse to set the force along with X-axis.Force
4. Force YUse to set the force along with Y-axis.Force
5. Force ZUse to set the force along with Z-axis.Force
6. Torque XUse to set the toque along with X-axis.Torque
7. Torque YUse to set the toque along with Y-axis.Torque
8. NameUse to set the name of point load.N/A
9. RBEUse to select a RBE for the point load. This option is available on FE/EasyFlex Shaft Set.N/A
10. Z-axisUse to define the shaft rotating axis. This option is available on FE/EasyFlex Shaft Set.N/A
