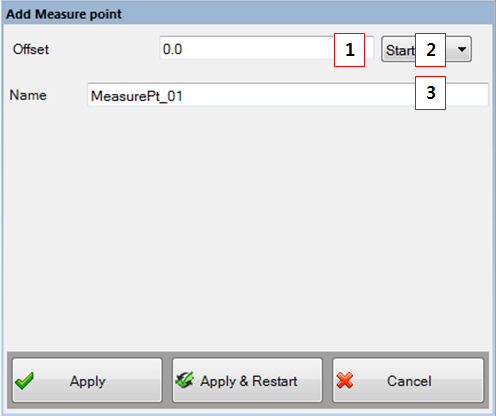

Figure 14.67: Add a Measure point to a Shaft Set

Figure 14.68: Parameters in the Add Measure point to Shaft Set dialog

Parameter	Description	Dimension
1. Offset	Use to set the offset which is a distance from the reference side of the Shaft Set.	Length
2. Reference side	Use to set the reference side as follows.	N/A
3. Name	Use to set the name of measure point.	N/A
