14.3.5.8. Add Unbalanced Mass

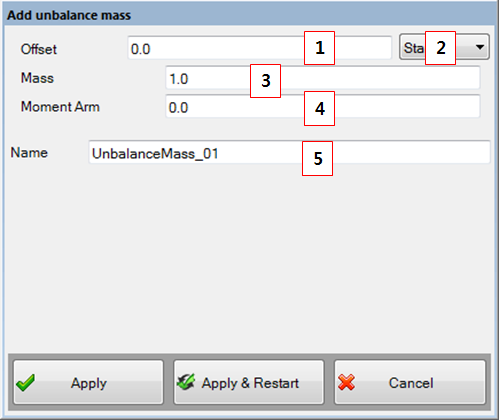

Figure 14.69: Add a unbalanced mass to a Shaft Set

Add a unbalanced mass to a Shaft Set

Figure 14.70: Parameters in the Add unbalanced mass to Shaft Set dialog

ParameterDescriptionDimension
1. OffsetUse to set the offset which is a distance from the reference side of the Shaft Set.Length
2. Reference side

Use to set the reference side as follows.

Parameters in the Add unbalanced mass to Shaft Set dialog

N/A
3. MassUse to set the mass.
4. Moment ArmUse to set the moment arm.
5. NameUse to set the name of the unbalanced mass.N/A
