Hexa Mesh Generation for a 3D Pipe Junction

In this tutorial, you will generate a mesh for a three-dimensional pipe junction. After checking the quality of the initial mesh, you will create an Ogrid in the blocking to improve mesh quality.

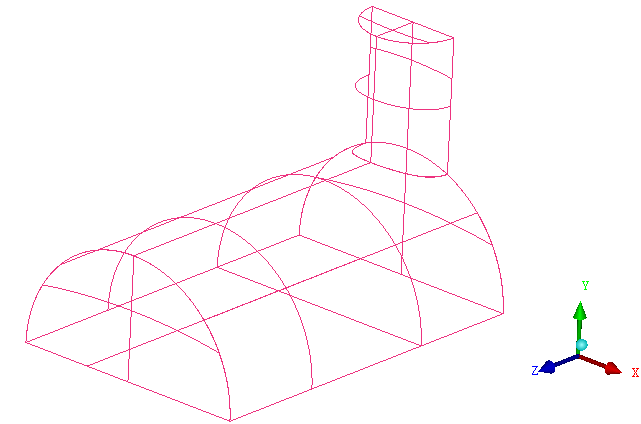

Figure 48: 3D Pipe Geometry

3D Pipe Geometry

This tutorial demonstrates how to do the following:

  • Create parts and a material point for the geometry.

  • Block the geometry.

  • Fit the Blocking to the Geometry.

  • Generate the initial mesh.

  • Check the mesh quality.

  • Create an Ogrid in the blocking.

  • Verify and save the mesh.
