Curve Table Tool

Curve Tables contain information about selected curves. They apply to:

• Sketched curves
• Turn Profile curves
• Deburring curves

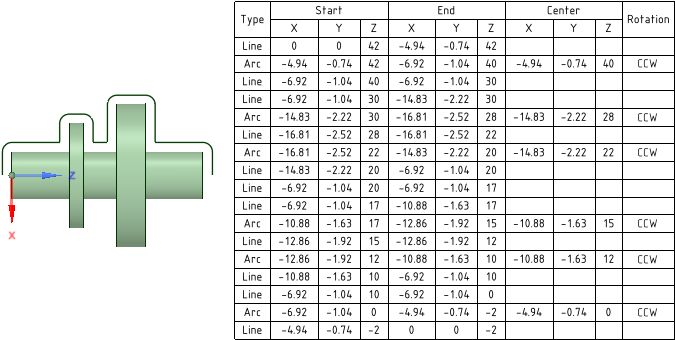

The image below is an example of Turn Profile curves.

Curve tables are similar to Hole Tables.

• They require an origin
• Are stored with the model
• Are shown in the Structure Tree

The following information is included in the table.

• Curve Type: Line or Arc
• Start: The starting point of a curve
• End: The end point of a curve
• Center: The center point of arcs
• Rotation: The rotation direction (CW or CCW)
