Surfaces

  Faceted surfaces can be created and modified with the following options:

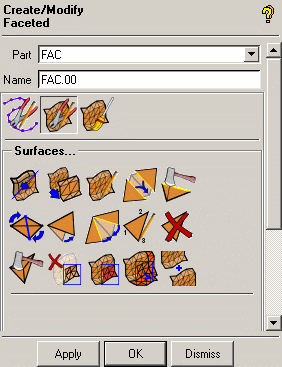

Figure 205: Create/Modify Faceted Options

Create/Modify Faceted Options

  • Part

    The part name for the newly created surface. The default naming behavior can be set in Settings > Geometry Options.

  • Name

    Enter a name for the surface. If no entity name is given, the default naming convention will be followed as described under Settings > Geometry Options.
