Create/Modify Faceted

  The Create/Modify Faceted option allows you to create/modify faceted curves and surfaces. Faceted curves and surfaces can be created and modified with the following options.

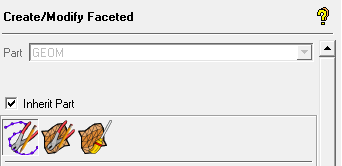

Figure 203: Create/Modify Faceted DEZ

Create/Modify Faceted DEZ

  • Part

    The part name for the newly created entity. The default naming behavior can be set in Settings > Geometry Options.

  • Name

    Enter a name for the faceted curve or surface. If no entity name is given, the default naming convention will be followed as described under Settings > Geometry Options.
