Blocking Options

Right-click the Blocking branch in the Display tree to view the Blocking display options. When the blocking tab is active, the hot key "i" will initialize the index control. The Blocking display options are as follows:

Figure 131: Blocking Display Options

Blocking Display Options

Index Control

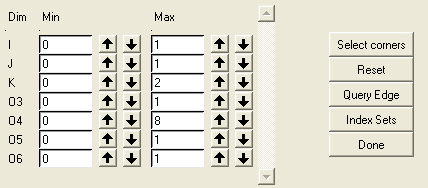

Figure 132: Index Control Window

Index Control Window

Select corners

Allows you to select boundary node vertices and adjusts the index range accordingly.

Reset

Resets the values to the minimum and maximum values, so that the entire blocking is displayed.

Query Edge

Allows you to select an edge. The system will then center the Index control on the dimension corresponding to the edge selected

When an Ogrid is created, a new index direction will be added to the Index control and a message will be printed with the corresponding dimension. Ogrid dimensions are named On where n begins with a value of 3. The reason for this is that dimensions 0, 1, and 2 already correspond to the I, J, and K indices.

The index range is not taken into account when the mesh is saved.

Index Sets

Contains options for saving and managing index sets based on the index control values.

Show

shows the list of the saved index sets in the Saved Index Sets dialog.

You can select the index set to restore from the list and the blocking display will be reset corresponding to the saved index values.

Add

saves the current set of index values. The saved index sets are numbered sequentially (1, 2, etc.).

Clear

clears all the saved index sets from the Saved Index Sets list.

Load

allows you to load previously saved index sets from an index control (*.ictrl) file.

Save

allows you to write the saved index sets to an index control (*.ictrl) file.

Done

Closes the window.

Set Line Width

Sets the width of Block edge lines.

Init output blocks

Initializes the number of Output Blocks to be equal to the number of regular topology blocks. See Pre-Mesh.

Blocking info

Provides information in the message window about the blocking (number/type of blocks, topology info, index info) and pre-mesh (number of nodes, elements). Information about shared walls (if defined) will also be reported.
