Chapter 2: Simulating Flow in a Static Mixer Using CFX in Stand-alone Mode

This tutorial includes:

This tutorial simulates a static mixer consisting of two inlet pipes delivering water into a mixing vessel; the water exits through an outlet pipe. A general workflow is established for analyzing the flow of fluid into and out of a mixer.



2.1. Tutorial Features

In this tutorial you will learn about:

  • Using Quick Setup mode in CFX-Pre to set up a problem.

  • Using CFX-Solver Manager to obtain a solution.

  • Modifying the outline plot in CFD-Post.

  • Using streamlines in CFD-Post to trace the flow field from a point.

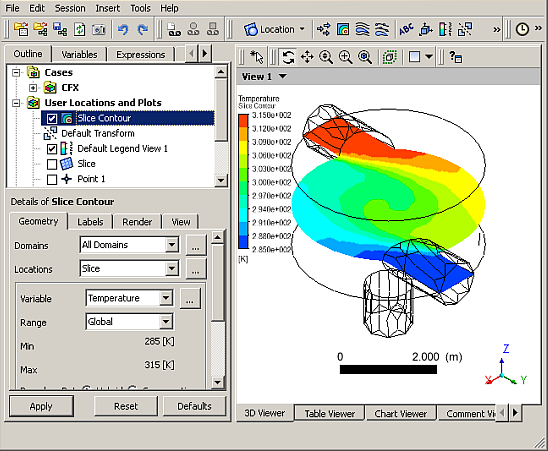

  • Viewing temperature using colored planes and contours in CFD-Post.

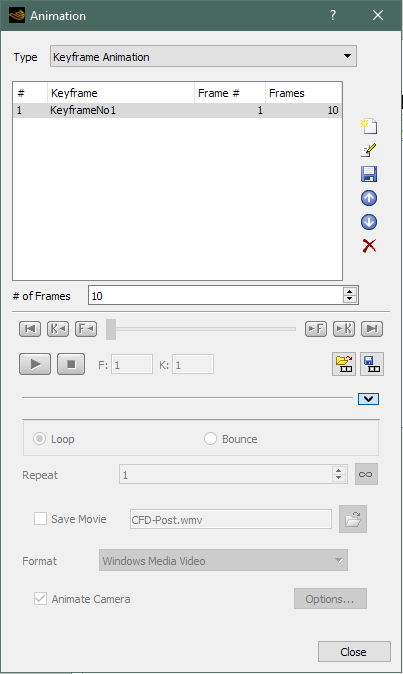

  • Creating an animation and saving it as a movie file.

Component

Feature

Details

CFX-Pre

User Mode

Quick Setup Wizard

Analysis Type

Steady State

Fluid Type

General Fluid

Domain Type

Single Domain

Turbulence Model

k-Epsilon

Heat Transfer

Thermal Energy

Boundary Conditions

Inlet (Subsonic)

Outlet (Subsonic)

Wall: No-Slip

Wall: Adiabatic

Timestep

Physical Time Scale

CFD-Post

Animation

Keyframe

Plots

Contour

Outline Plot (Wireframe)

Point

Slice Plane

Streamline



2.2. Overview of the Problem to Solve

This tutorial simulates a static mixer consisting of two inlet pipes delivering water into a mixing vessel; the water exits through an outlet pipe. A general workflow is established for analyzing the flow of fluid into and out of a mixer.

Water enters through both pipes at the same rate but at different temperatures. The first entry is at a rate of 2 m/s and a temperature of 315 K and the second entry is at a rate of 2 m/s at a temperature of 285 K. The radius of the mixer is 2 m.

Your goal in this tutorial is to understand how to use CFX to determine the speed and temperature of the water when it exits the static mixer.

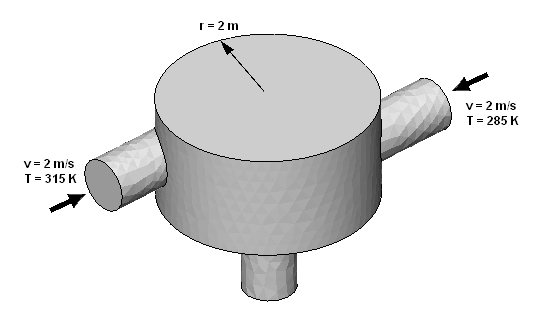

Figure 2.1: Static Mixer with 2 Inlet Pipes and 1 Outlet Pipe

Static Mixer with 2 Inlet Pipes and 1 Outlet Pipe

If this is the first tutorial you are working with, it is important to review the following topics before beginning:



2.3. Preparing the Working Directory

  1. Create a working directory.

    Ansys CFX uses a working directory as the default location for loading and saving files for a particular session or project.

  2. Download the static_mixer_standalone.zip file here .

  3. Unzip static_mixer_standalone.zip to your working directory.

    Ensure that the following tutorial input file is in your working directory:

    • StaticMixerMesh.gtm

  4. Set the working directory and start CFX-Pre.

    For details, see Setting the Working Directory and Starting Ansys CFX in Stand-alone Mode.



2.4. Defining the Case Using CFX-Pre

Because you are starting with an existing mesh, you can immediately use CFX-Pre to define the simulation. This is how CFX-Pre will look with the imported mesh:

The left pane of CFX-Pre displays the Outline workspace.

The tutorial follows this general workflow for Quick Setup mode in CFX-Pre:



2.4.1. Starting Quick Setup Mode

Quick Setup mode provides a simple wizard-like interface for setting up simple cases. This is useful for getting familiar with the basic elements of a CFD problem setup. This section describes using Quick Setup mode to develop a simulation in CFX-Pre.

  1. In CFX-Pre, select File > New Case.

    The New Case File dialog box is displayed.

  2. Select Quick Setup and click OK.

    Note:  If this is the first time you are running this software, a message box will appear notifying you that automatic generation of the default domain is active. To avoid seeing this message again clear Show This Message Again.

  3. Select File > Save Case As.

  4. Under File name, type: StaticMixer

  5. Click Save.



2.4.2. Setting the Physics Definition

You need to specify the fluids used in a simulation. A variety of fluids are already defined as library materials. For this tutorial you will use a prepared fluid, Water, which is defined to be water at 25°C.

  1. Ensure that the Simulation Definition panel is displayed at the top of the details view.

  2. Under Working Fluid > Fluid select Water.



2.4.3. Importing a Mesh

At least one mesh must be imported before physics are applied.

  1. In the Simulation Definition panel, under Mesh Data > Mesh File, click Browse  .

    The Import Mesh dialog box appears.

  2. Under Files of type, select CFX Mesh (*gtm *cfx).

  3. From your working directory, select StaticMixerMesh.gtm.

  4. Click Open.

    The mesh loads.

  5. Click Next.



2.4.4. Using the Viewer

Now that the mesh is loaded, take a moment to explore how you can use the viewer toolbar to zoom in or out and to rotate the object in the viewer.



2.4.4.1. Using the Zoom Tools

There are several icons available for controlling the level of zoom in the viewer.

  1. Click Zoom Box

  2. Click and drag a rectangular box over the geometry.

  3. Release the mouse button to zoom in on the selection.

    The geometry zoom changes to display the selection at a greater resolution.

  4. Click Fit View   to re-center and re-scale the geometry.



2.4.4.2. Rotating the Geometry

If you need to rotate an object or to view it from a new angle, you can use the viewer toolbar.

  1. Click Rotate   on the viewer toolbar.

  2. Click and drag within the geometry repeatedly to test the rotation of the geometry.

    The geometry rotates based on the direction of mouse movement and based on the initial mouse cursor shape, which changes depending on where the mouse cursor is in the viewer. If the mouse drag starts near a corner of the viewer window, the motion of the geometry will be constrained to rotation about a single axis, as indicated by the mouse cursor shape.

  3. Right-click a blank area in the viewer and select Predefined Camera > View From -X.

  4. Right-click a blank area in the viewer and select Predefined Camera > Isometric View (Z Up).

    A clearer view of the mesh is displayed.



2.4.5. Defining Model Data

You need to define the type of flow and the physical models to use in the fluid domain.

You will specify the flow as steady-state with turbulence and heat transfer. Turbulence is modeled using the - turbulence model and heat transfer using the thermal energy model. The - turbulence model is a commonly used model and is suitable for a wide range of applications. The thermal energy model neglects high speed energy effects and is therefore suitable for low speed flow applications.

  1. Ensure that the Physics Definition panel is displayed.

  2. Under Model Data, set Reference Pressure to 1 [atm].

    All other pressure settings are relative to this reference pressure.

  3. Set Heat Transfer to Thermal Energy.

  4. Set Turbulence to k-Epsilon.

  5. Click Next.



2.4.6. Defining Boundaries

The CFD model requires the definition of conditions on the boundaries of the domain.

  1. Ensure that the Boundary Definition panel is displayed.

  2. Delete Inlet and Outlet from the list by right-clicking each and selecting Delete Boundary.

  3. Right-click in the blank area where Inlet and Outlet were listed, then select Add Boundary.

  4. Set Name to in1.

  5. Click OK.

    The boundary is created and, when selected, properties related to the boundary are displayed.



2.4.7. Setting Boundary Data

Once boundaries are created, you need to create associated data. Based on Figure 2.1: Static Mixer with 2 Inlet Pipes and 1 Outlet Pipe, you will define the velocity and temperature for the first inlet.

  1. Ensure that in1 is displayed on the Boundary Definition panel.

  2. Set Boundary Type to Inlet.

  3. Set Location to in1.



2.4.8. Setting Flow Specification

Once boundary data is defined, the boundary needs to have the flow specification assigned.

  1. Ensure that Flow Specification is displayed on the Boundary Definition panel.

  2. Set Option to Normal Speed.

  3. Set Normal Speed to 2 [m s^-1].



2.4.9. Setting Temperature Specification

Once flow specification is defined, the boundary needs to have temperature assigned.

  1. Ensure that Temperature Specification is displayed on the Boundary Definition panel.

  2. Set Static Temperature to 315 [K].



2.4.10. Reviewing the Boundary Condition Definitions

Defining the boundary condition for in1 required several steps. Here the settings are reviewed for accuracy.

Based on Figure 2.1: Static Mixer with 2 Inlet Pipes and 1 Outlet Pipe, the first inlet boundary condition consists of a velocity of 2 m/s and a temperature of 315 K at one of the side inlets.

  • Review the boundary in1 settings on the Boundary Definition panel for accuracy. They should be as follows:

    Setting

    Value

    in1

    > Boundary Type



    Inlet

    in1

    > Location



    in1

    Flow Specification

    > Option



    Normal Speed

    Flow Specification

    > Normal Speed



    2 [m s^-1]

    Temperature Specification

    > Static Temperature



    315 [K]



2.4.11. Creating the Second Inlet Boundary Definition

Based on Figure 2.1: Static Mixer with 2 Inlet Pipes and 1 Outlet Pipe, you know the second inlet boundary condition consists of a velocity of 2 m/s and a temperature of 285 K at one of the side inlets. You will define that now.

  1. Under the Boundary Definition panel, right-click in the selector area and select Add Boundary.

  2. Create a new boundary named in2 with these settings:

    Setting

    Value

    in2

    > Boundary Type



    Inlet

    in2

    > Location



    in2

    Flow Specification

    > Option



    Normal Speed

    Flow Specification

    > Normal Speed



    2 [m s^-1]

    Temperature Specification

    > Static Temperature



    285 [K]



2.4.12. Creating the Outlet Boundary Definition

Now that the second inlet boundary has been created, the same concepts can be applied to building the outlet boundary.

  1. Create a new boundary named out with these settings:

    Setting

    Value

    out

    > Boundary Type



    Outlet

    out

    > Location



    out

    Flow Specification

    > Option



    Average Static Pressure

    Flow Specification

    > Relative Pressure



    0 [Pa]

  2. Click Next.



2.4.13. Moving to General Mode

There are no further boundary conditions that need to be set. All 2D exterior regions that have not been assigned to a boundary condition are automatically assigned to the default boundary condition.

  • Set Operation to Enter General Mode and click Finish.

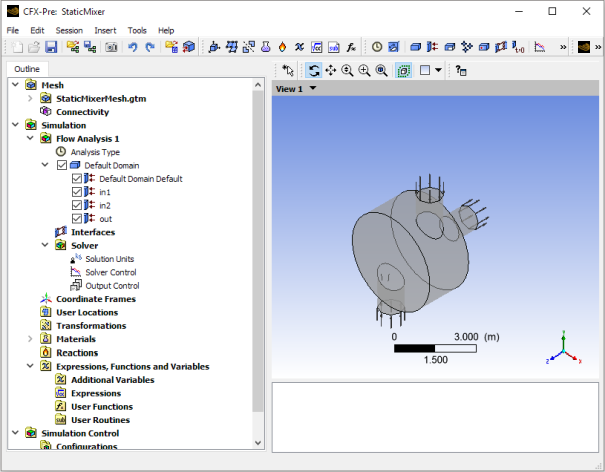

    The three boundary conditions are displayed in the viewer as sets of arrows at the boundary surfaces. Inlet boundary arrows are directed into the domain. Outlet boundary arrows are directed out of the domain.



2.4.14. Setting Solver Control

Solver Control parameters control aspects of the numerical solution generation process.

While an upwind advection scheme is less accurate than other advection schemes, it is also more robust. This advection scheme is suitable for obtaining an initial set of results, but in general should not be used to obtain final accurate results.

The time scale can be calculated automatically by the solver or set manually. The Automatic option tends to be conservative, leading to reliable, but often slow, convergence. It is often possible to accelerate convergence by applying a time scale factor or by choosing a manual value that is more aggressive than the Automatic option. In this tutorial, you will select a physical time scale, leading to convergence that is twice as fast as the Automatic option.

  1. Click Solver Control  .

  2. On the Basic Settings tab, set Advection Scheme > Option to Upwind.

  3. Set Convergence Control > Fluid Timescale Control > Timescale Control to Physical Timescale and set the physical timescale value to 2 [s].

  4. Click OK.



2.4.15. Writing the CFX-Solver Input (.def) File

The simulation file, StaticMixer.cfx, contains the simulation definition in a format that can be loaded by CFX-Pre, enabling you to complete (if applicable), restore, and modify the simulation definition. The simulation file differs from the CFX-Solver input file in that it can be saved at any time while defining the simulation.

  1. Click Define Run  .

  2. Set File name to StaticMixer.def.

  3. Click Save.

    The CFX-Solver input file (StaticMixer.def) is created. CFX-Solver Manager automatically starts and, on the Define Run dialog box, Solver Input File is set.

  4. If you are notified the file already exists, click Overwrite.

  5. When you are finished, select File > Quit in CFX-Pre.

  6. If prompted, click Yes or Save & Quit to save StaticMixer.cfx.



2.5. Obtaining the Solution Using CFX-Solver Manager

CFX-Solver Manager has a visual interface that displays a variety of results and should be used when plotted data must be viewed during problem solving.

Two windows are displayed when CFX-Solver Manager runs. There is an adjustable split between the windows, which is oriented either horizontally or vertically depending on the aspect ratio of the entire CFX-Solver Manager window (also adjustable).

One window shows the convergence history plots and the other displays text output from CFX-Solver.

The text lists physical properties, boundary conditions and various other parameters used or calculated in creating the model. All the text is written to the CFX-Solver Output file automatically (in this case, StaticMixer_001.out).



2.5.1. Starting the Run

The Define Run dialog box allows configuration of a run for processing by CFX-Solver.

When CFX-Solver Manager is launched automatically from CFX-Pre, all of the information required to perform a new serial run (on a single processor) is entered automatically. You do not need to alter the information in the Define Run dialog box. This is a very quick way to launch into CFX-Solver without having to define settings and values.

  1. Ensure that the Define Run dialog box is displayed.

  2. Optionally specify a local parallel run:

    1. Set Run Mode to a parallel mode suitable for your configuration; for example, Intel MPI Local Parallel.

      This is the recommended method for most applications.

    2. If required, click Add Process   to increase the maximum number of processes.

      Ideally, the number of processes should not exceed the number of available processor cores. The number of processes used will be the number of partitions for the mesh.

    More detailed information about setting up CFX to run in parallel is available in Flow Around a Blunt Body.

  3. Click Start Run.

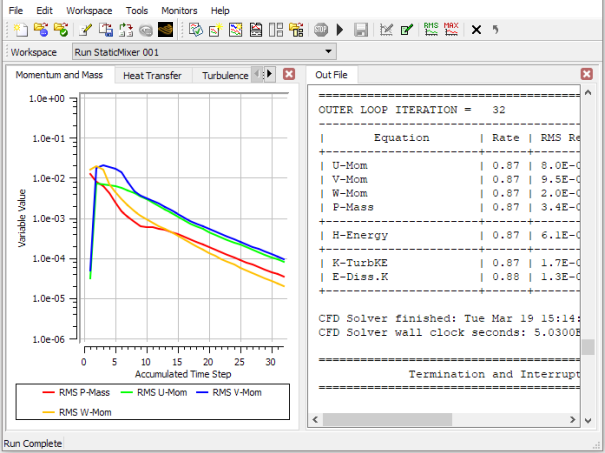

    CFX-Solver launches and a split screen appears and displays the results of the run graphically and as text. The panes continue to build as CFX-Solver Manager operates.

    Note:  Once the second iteration appears, data begins to plot. Plotting may take a long time depending on the amount of data to process. Let the process run.



2.5.2. Moving from CFX-Solver Manager to CFD-Post

Once CFX-Solver has finished, you can use CFD-Post to review the finished results.

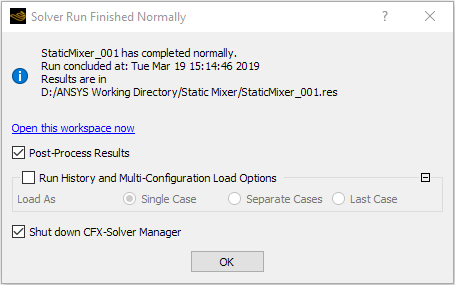

  1. When CFX-Solver is finished, select the check box next to Post-Process Results.

  2. If using stand-alone mode, select the check box next to Shut down CFX-Solver Manager.

  3. Click OK. After a short pause, CFX-Solver Manager closes and CFD-Post opens.



2.6. Viewing the Results Using CFD-Post

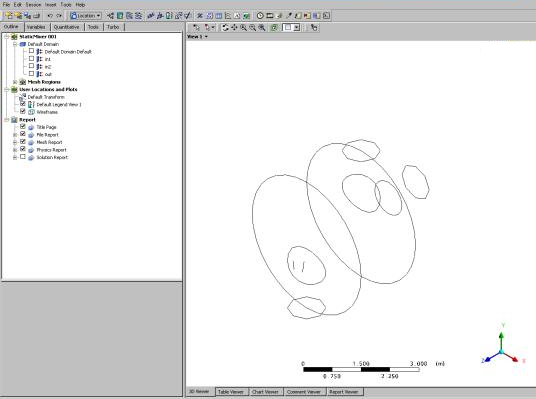

When CFD-Post starts, the viewer and Outline workspace are displayed.

The viewer displays an outline of the geometry and other graphic objects. You can use the mouse or the toolbar icons to manipulate the view, exactly as in CFX-Pre.

The tutorial follows this general workflow for viewing results in CFD-Post:



2.6.1. Setting the Edge Angle for a Wireframe Object

The outline of the geometry is called the wireframe or outline plot.

By default, CFD-Post displays only some of the surface mesh. This sometimes means that when you first load your results file, the geometry outline is not displayed clearly. You can control the amount of the surface mesh shown by editing the Wireframe object listed in the Outline tree view.

The check boxes next to each object name in the Outline control the visibility of each object. Currently only the Wireframe and Default Legend objects have visibility turned on.

The edge angle determines how much of the surface mesh is visible. If the angle between two adjacent faces is greater than the edge angle, then that edge is drawn. If the edge angle is set to 0°, the entire surface mesh is drawn. If the edge angle is large, then only the most significant corner edges of the geometry are drawn.

For this geometry, a setting of approximately 15° lets you view the model location without displaying an excessive amount of the surface mesh.

In this module you can also modify the zoom settings and view of the wireframe.

  1. In the Outline, under User Locations and Plots, double-click Wireframe.

    Tip:  While it is not necessary to change the view to set the angle, do so to explore the practical uses of this feature.

  2. Right-click a blank area anywhere in the viewer, select Predefined Camera from the shortcut menu, and select Isometric View (Z up).

  3. In the Wireframe details view, under Definition, click in the Edge Angle box.

    An embedded slider is displayed.

  4. Type a value of 10 [degree].

  5. Click Apply to update the object with the new setting.

    Notice that more surface mesh is displayed.

  6. Drag the embedded slider to set the Edge Angle value to approximately 45 [degree].

  7. Click Apply to update the object with the new setting.

    Less of the outline of the geometry is displayed.

  8. Type a value of 15 [degree].

  9. Click Apply to update the object with the new setting.



2.6.2. Creating a Point for the Origin of the Streamline

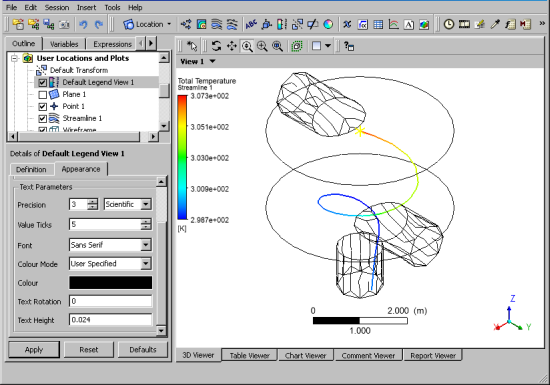

A streamline is the path that a particle of zero mass would follow through the domain.

  1. Select Insert > Location > Point from the main menu.

    You can also use the toolbars to create a variety of objects. Later modules and tutorials explore this further.

  2. Click OK.

    This accepts the default name.

  3. Under Definition, ensure that Method is set to XYZ.

  4. Under Point, enter the following coordinates: -1, -1, 1.

    This is a point near the first inlet.

  5. Click Apply.

    The point appears as a symbol in the viewer as a crosshair symbol.



2.6.3. Creating a Streamline Originating from a Point

Where applicable, streamlines can trace the flow direction forwards (downstream) and/or backwards (upstream).

  1. From the main menu, select Insert > Streamline.

  2. Click OK.

  3. Set Definition > Start From to Point 1.

    Tip:  To create streamlines originating from more than one location, click the Ellipsis   icon to the right of the Start From box. This displays the Location Selector dialog box, where you can use the Ctrl and Shift keys to pick multiple locators.

  4. Click the Color tab.

  5. Set Mode to Variable.

  6. Set Variable to Total Temperature.

  7. Set Range to Local.

  8. Click Apply.

    The streamline shows the path of a zero mass particle from Point 1. The temperature is initially high near the hot inlet, but as the fluid mixes the temperature drops.



2.6.4. Rearranging the Point

Once created, a point can be rearranged manually or by setting specific coordinates.

Tip:  In this module, you may choose to display various views and zooms from the Predefined Camera option in the shortcut menu (such as Isometric View (Z up) or View From -X) and by using Zoom Box   if you prefer to change the display.

  1. In Outline, under User Locations and Plots double-click Point 1.

    Properties for the selected user location are displayed.

  2. Under Point, set these coordinates: -1, -2.9, 1.

  3. Click Apply.

    The point is moved and the streamline redrawn.

  4. In the viewer toolbar, click Select   and ensure that the adjacent toolbar icon is set to Single Select  .

    While in select mode, you cannot use the left mouse button to re-orient the object in the viewer.

  5. In the viewer, drag Point 1 (appears as a yellow addition sign) to a new location within the mixer.

    The point position is updated in the details view and the streamline is redrawn at the new location. The point moves normal in relation to the viewing direction.

  6. Click Rotate  .

    Tip:  You can also click in the viewer area, and press the space bar to toggle between Select and Viewing Mode. A way to pick objects from Viewing Mode is to hold down Ctrl + Shift while clicking on an object with the left mouse button.

  7. Under Point, reset these coordinates: -1, -1, 1.

  8. Click Apply.

    The point appears at its original location.

  9. Right-click a blank area in the viewer and select Predefined Camera > View From -X.



2.6.5. Configuring a Default Legend

You can modify the appearance of the default legend.

The default legend appears whenever a plot is created that is colored by a variable. The streamline color is based on temperature; therefore, the legend shows the temperature range. The color pattern on the legend’s color bar is banded in accordance with the bands in the plot.

Note:  If a user-specified range is used for the legend, one or more bands may represent values beyond the legend’s range. In this case, these band colors are extrapolated slightly past the range of colors shown in the legend.

The default legend displays values for the last eligible plot that was opened in the details view. To maintain a legend definition during a CFD-Post session, you can create a new legend by clicking Legend  .

Because there are many settings that can be customized for the legend, this module allows you the freedom to experiment with them. In the last steps you will set up a legend, based on the default legend, with a minor modification to the position.

Tip:  When editing values, you can restore the values that were present when you began editing by clicking Reset. To restore the factory-default values, click Default.

  1. Double-click Default Legend View 1.

    The Definition tab of the default legend is displayed.

  2. Configure the following setting(s):

    Tab

    Setting

    Value

    Definition

    Title Mode

    User Specified

    Title

    Streamline Temp.

    Horizontal

    (Selected)

    Location

    > Y Justification



    Bottom

  3. Click Apply.

    The appearance and position of the legend changes based on the settings specified.

  4. Modify various settings in Definition and click Apply after each change.

  5. Select the Appearance tab.

  6. Modify a variety of settings in the Appearance and click Apply after each change.

  7. Click Defaults.

  8. Click Apply.

  9. Under Outline, in User Locations and Plots, clear the check boxes for Point 1 and Streamline 1.

    Since both are no longer visible, the associated legend no longer appears.



2.6.6. Creating a Slice Plane

Defining a slice plane allows you to obtain a cross-section of the geometry.

In CFD-Post you often view results by coloring a graphic object. The graphic object could be an isosurface, a vector plot, or in this case, a plane. The object can be a fixed color or it can vary based on the value of a variable.

You already have some objects defined by default (listed in the Outline). You can view results on the boundaries of the static mixer by coloring each boundary object by a variable. To view results within the geometry (that is, on non-default locators), you will create new objects.

You can use the following methods to define a plane:

  • Three Points: creates a plane from three specified points.

  • Point and Normal: defines a plane from one point on the plane and a normal vector to the plane.

  • YZ Plane, ZX Plane, and XY Plane: similar to Point and Normal, except that the normal is defined to be normal to the indicated plane.

  1. From the main menu, select Insert > Location > Plane or click Location > Plane.

  2. In the Insert Plane window, type: Slice

  3. Click OK.

    The Geometry, Color, Render, and View tabs enable you to switch between settings.

  4. Click the Geometry tab.



2.6.7. Defining Slice Plane Geometry

You need to choose the vector normal to the plane. You want the plane to lie in the x-y plane, hence its normal vector points along the z-axis. You can specify any vector that points in the Z direction, but you will choose the most obvious (0,0,1).

  1. If required, under Geometry, expand Definition.

  2. Under Method select Point and Normal.

  3. Under Point enter 0,0,1.

  4. Under Normal enter 0,0,1.

  5. Ensure that the Plane Type > Slice is selected.

  6. Click Apply.

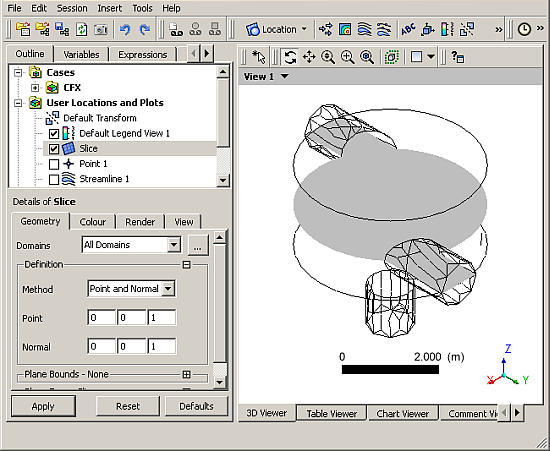

    Slice appears under User Locations and Plots. Rotate the view to see the plane.



2.6.8. Configuring Slice Plane Views

Depending on the view of the geometry, various objects may not appear because they fall in a 2D space that cannot be seen.

  1. Right-click a blank area in the viewer and select Predefined Camera > Isometric View (Z up).

    The slice is now visible in the viewer.

  2. Click Zoom Box  .

  3. Click and drag a rectangular selection over the geometry.

  4. Release the mouse button to zoom in on the selection.

  5. Click Rotate  .

  6. Click and drag the mouse pointer down slightly to rotate the geometry towards you.

  7. Select Isometric View (Z up) as described earlier.



2.6.9. Rendering Slice Planes

Render settings determine how the plane is drawn.

  1. In the details view for Slice, select the Render tab.

  2. Clear Show Faces.

  3. Select Show Mesh Lines.

  4. Under Show Mesh Lines change Color Mode to User Specified.

  5. Click the current color in Line Color to change to a different color.

    For a greater selection of colors, click the Ellipsis   icon to use the Select color dialog box.

  6. Click Apply.

  7. Click Zoom Box  .

  8. Zoom in on the geometry to view it in greater detail.

    The line segments show where the slice plane intersects with mesh element faces. The end points of each line segment are located where the plane intersects mesh element edges.

  9. Right-click a blank area in the viewer and select Predefined Camera > View From +Z.

    The image shown below can be used for comparison with Flow in a Static Mixer (Refined Mesh) (in the section Creating a Slice Plane), where a refined mesh is used.



2.6.10. Coloring the Slice Plane

The Color panel is used to determine how the object faces are colored.

  1. Configure the following setting(s) of Slice:

    Tab

    Setting

    Value

    Color

    Mode

    Variable [ a ]

    Variable

    Temperature

    Render

    Show Faces

    (Selected)

    Show Mesh Lines

    (Cleared)

    1. You can specify the variable (in this case, temperature) used to color the graphic element. The Constant mode allows you to color the plane with a fixed color.

  2. Click Apply.

    Hot water (red) enters from one inlet and cold water (blue) from the other.



2.6.11. Moving the Slice Plane

The plane can be moved to different locations.

  1. Right-click a blank area in the viewer and select Predefined Camera > Isometric View (Z up) from the shortcut menu.

  2. Click the Geometry tab.

    Review the settings in Definition under Point and under Normal.

  3. Click Single Select  .

  4. Click and drag the plane to a new location that intersects the domain.

    As you drag the mouse, the viewer updates automatically. Note that Point updates with new settings.

  5. Set Point settings to 0,0,1.

  6. Click Apply.

  7. Click Rotate  .

  8. Turn off visibility of Slice by clearing the check box next to Slice in the Outline tree view.



2.6.12. Adding Contours

Contours connect all points of equal value for a scalar variable (for example, Temperature) and help to visualize variable values and gradients. Colored bands fill the spaces between contour lines. Each band is colored by the average color of its two bounding contour lines (even if the latter are not displayed).

  1. Right-click a blank area in the viewer and select Predefined Camera > Isometric View (Z up) from the shortcut menu.

  2. Select Insert > Contour from the main menu or click Contour  .

    The Insert Contour dialog box is displayed.

  3. Set Name to Slice Contour.

  4. Click OK.

  5. Configure the following setting(s):

    Tab

    Setting

    Value

    Geometry

    Locations

    Slice

    Variable

    Temperature

    Render

    Show Contour Bands

    (Selected)

  6. Click Apply.

    Important:  The colors of 3D graphics object faces are slightly altered when lighting is on. To view colors with highest accuracy, go to the Render tab and, under Show Contour Bands, clear Lighting and click Apply.

    The graphic element faces are visible, producing a contour plot as shown.

Note:  Make sure that the visibility for Slice (in the Outline tree view) is turned off.



2.6.13. Working with Animations

Animations build transitions between views for development of video files.

The tutorial follows this general workflow for creating a keyframe animation:



2.6.13.1. Showing the Animation Dialog Box

The Animation dialog box is used to define keyframes and to export to a video file.

  • Select Tools > Animation or click Animation  .

    The Animation dialog box appears.



2.6.13.2. Creating the First Keyframe

Keyframes are required in order to produce an animation. You need to define the first viewer state, a second (and final) viewer state, and set the number of interpolated intermediate frames.

  1. Right-click a blank area in the viewer and select Predefined Camera > Isometric View (Z up).

  2. In the Outline, under User Locations and Plots, turn off the visibility of Slice Contour and turn on the visibility of Slice.

  3. Set Type to Keyframe Animation.

  4. In the Animation dialog box, click New  .

    A new keyframe named KeyframeNo1 is created. This represents the current image displayed in the viewer.



2.6.13.3. Creating the Second Keyframe

Define the second keyframe and the number of intermediate frames:

  1. In the Outline, under User Locations and Plots, double-click Slice.

  2. On the Geometry tab, set Point coordinate values to (0,0,-1.99).

  3. Click Apply.

    The slice plane moves to the bottom of the mixer.

  4. In the Animation dialog box, click New  .

    KeyframeNo2 is created and represents the image displayed in the viewer.

  5. Select KeyframeNo1.

  6. Set # of Frames (located below the list of keyframes) to 20.

    This is the number of intermediate frames used when going from KeyframeNo1 to KeyframeNo2. This number is displayed in the Frames column for KeyframeNo1.

  7. Press Enter.

    The Frame # column shows the frame in which each keyframe appears. KeyframeNo1 appears at frame 1 since it defines the start of the animation. KeyframeNo2 is at frame 22 since you have 20 intermediate frames (frames 2 to 21) in between KeyframeNo1 and KeyframeNo2.



2.6.13.4. Viewing the Animation

More keyframes could be added, but this animation has only two keyframes (which is the minimum possible).

The controls previously grayed-out in the Animation dialog box are now available. The number of intermediate frames between keyframes is listed beside the keyframe having the lowest number of the pair. The number of frames listed beside the last keyframe is ignored.

  1. Click To Beginning  .

    This ensures that the animation will begin at the first keyframe.

  2. Click Play the animation  .

    The animation plays from frame 1 to frame 22. It plays relatively slowly because the slice plane must be updated for each frame.



2.6.13.5. Modifying the Animation

To make the plane sweep through the whole geometry, you will set the starting position of the plane to be at the top of the mixer. You will also modify the Range properties of the plane so that it shows the temperature variation better. As the animation is played, you can see the hot and cold water entering the mixer. Near the bottom of the mixer (where the water flows out) you can see that the temperature is quite uniform. The new temperature range lets you view the mixing process more accurately than the global range used in the first animation.

  1. Configure the following setting(s) of Slice:

    Tab

    Setting

    Value

    Geometry

    Point

    0, 0, 1.99

    Color

    Mode

    Variable

    Variable

    Temperature

    Range

    User Specified

    Min

    295 [K]

    Max

    305 [K]

  2. Click Apply.

    The slice plane moves to the top of the static mixer.

    Note:  Do not double-click in the next step.

  3. In the Animation dialog box, single click (do not double-click) KeyframeNo1 to select it.

    If you had double-clicked KeyFrameNo1, the plane and viewer states would have been redefined according to the stored settings for KeyFrameNo1. If this happens, click Undo   and try again to select the keyframe.

  4. Click Set Keyframe  .

    The image in the viewer replaces the one previously associated with KeyframeNo1.

  5. Double-click KeyframeNo2.

    The object properties for the slice plane are updated according to the settings in KeyFrameNo2.

  6. Configure the following setting(s) of Slice:

    Tab

    Setting

    Value

    Color

    Mode

    Variable

    Variable

    Temperature

    Range

    User Specified

    Min

    295 [K]

    Max

    305 [K]

  7. Click Apply.

  8. In the Animation dialog box, single-click KeyframeNo2.

  9. Click Set Keyframe   to save the new settings to KeyframeNo2.



2.6.13.6. Saving a Movie

  1. Click More Animation Options   to view the additional options.

    The Loop and Bounce option buttons determine what happens when the animation reaches the last keyframe. When Loop is selected, the animation repeats itself the number of times defined by Repeat. When Bounce is selected, every other cycle is played in reverse order, starting with the second.

  2. Select the check box next to Save Movie.

  3. Set Format to MPEG1.

  4. Click Browse   next to Save Movie.

  5. Under File name type: StaticMixer.mpg

  6. If required, set the path location to a different directory.

  7. Click Save.

    The movie filename (including path) has been set, but the animation has not yet been produced.

  8. Click To Beginning  .

  9. Click Play the animation  .

  10. If prompted to overwrite an existing movie click Overwrite.

    The animation plays and builds an MPEG file.

  11. Click the Options button at the bottom of the Animation dialog box.

    In Advanced, you can see that a Frame Rate of 24 frames per second was used to create the animation. The animation you produced contains a total of 22 frames, so it takes just under 1 second to play in a media player.

  12. Click Cancel to close the dialog box.

  13. Close the Animation dialog box.

  14. Review the animation in third-party software as required.



2.6.14. Quitting CFD-Post

When finished with CFD-Post, exit the current window:

  1. When you are finished, select File > Quit to exit CFD-Post.

  2. Click Quit if prompted to save.
