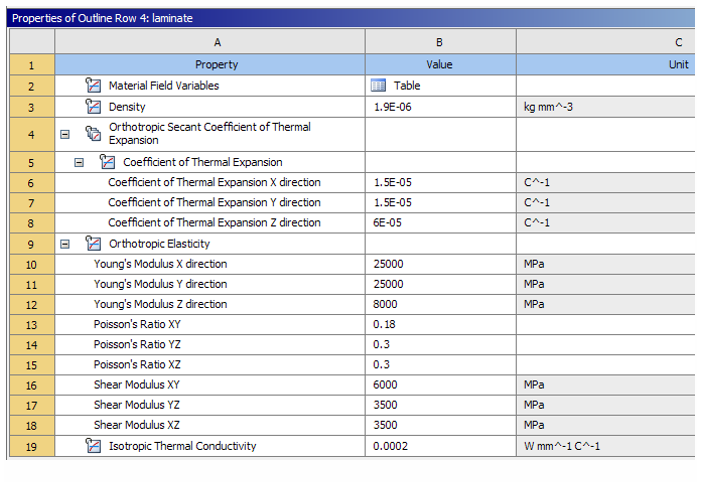

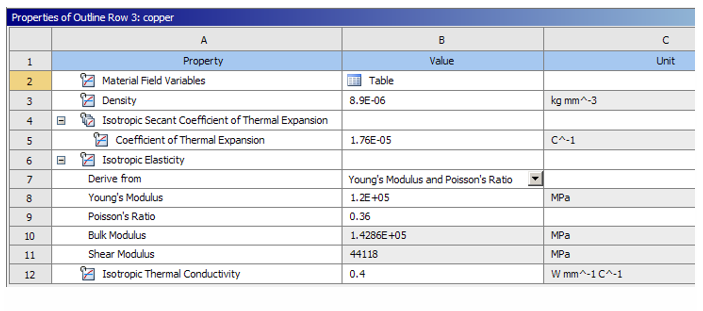

Contents Chapter 59: Thermal-Structural Analysis of a Printed Circuit Board | Print page 59.4. Material PropertiesFollowing are the thermal and structural material properties of the copper, laminate, and resin materials at 22°C: « 59.3. Modeling 59.5. Boundary Conditions and Loading »
