2.1.9.1. Reference Direction

The Reference Direction can be defined by Rosettes or from tabular values. A single Rosette is sufficient for the definition of the Reference Direction. Multiple Rosettes can be selected for one Oriented Selection Set to obtain complex Reference Direction definition. In this case, a Selection Method must be used to determine which Rosette is applicable to what part of the Element Set. The Selection Method offers several interpolation algorithms listed below:

  • Ansys Classic: Coordinate system is projected on the elements as defined in Ansys (see Coordinate Systems).

  • Maximum Angle: Coordinate system in which the Z direction has the maximum angle with the element orientation defines the Reference Direction of the Oriented Selection Set.

  • Maximum Angle Superposed: Same as Maximum Angle but all the chosen coordinate systems are considered and weighted by the maximum difference angle direction.

  • Minimum Angle: Coordinate system in which the Z direction has the minimum angle with the element orientation defines the Reference Direction of the Oriented Selection Set. (default)

  • Minimum Angle Superposed: Same as Minimum Angle but all the chosen coordinate systems are considered and weighted by the minimum difference angle direction.

  • Minimum Distance: Nearest coordinate system of the element defines the Reference Direction of the Oriented Selection Set

  • Minimum Distance Superposed: Same as Minimum Distance but all the chosen coordinate systems are considered and weighted by the distance to the element.

  • Tabular Values: Interpolated from the values put in a Look-Up Table. The table must include the location values and a direction column.


Note:  If the determination of an element's Reference Direction fails, an alternate computation method is used and a warning is issued. In this case, it is recommended to verify the Reference Directions of the affected Oriented Selection Set.


The bonding laminates of the T-Joint example are a case where a Minimum Angle Selection Method is suitable.

Figure 2.71: Reference Direction of a Bonding Laminate Defined by Two Rosettes and a Minimum Angle Selection Method

Reference Direction of a Bonding Laminate Defined by Two Rosettes and a Minimum Angle Selection Method

2.1.9.1.1. Use Cases for Rotation Angle
Reference Directions Perpendicular to Edges

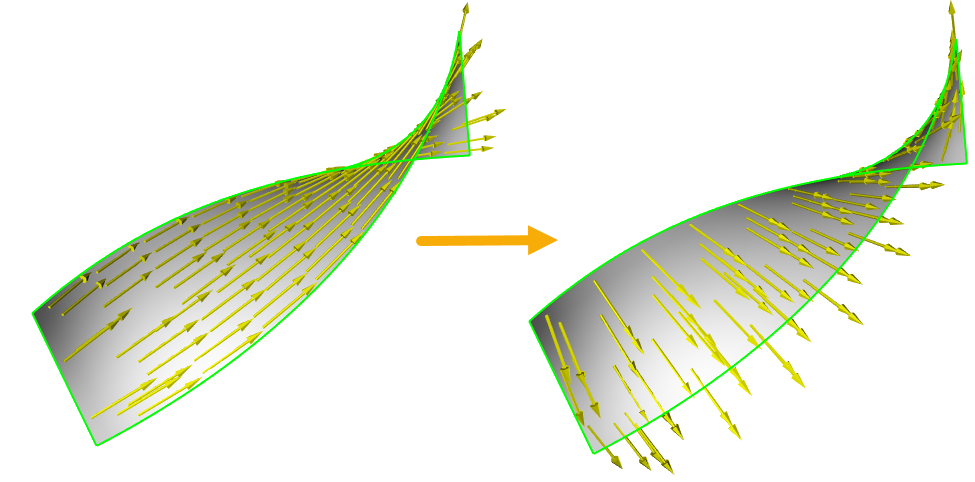

Edge-wise Rosettes can define a Reference Direction along an edge as shown in the left model in Figure 2.72: Reference Directions Along an Edge and Perpendicular to an Edge. To create a Reference Direction perpendicular to an edge as shown in the right model, you may use the same Rosettes and set the Rotation Angle to 90.0 degrees as shown below.

Figure 2.72: Reference Directions Along an Edge and Perpendicular to an Edge

Reference Directions Along an Edge and Perpendicular to an Edge

Axial Reference Directions

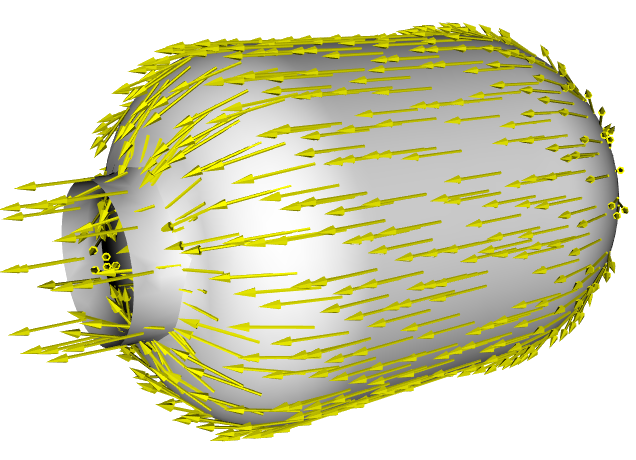

You may also use Rotation Angle to define a Reference Direction parallel to the axis of an axisymmetric structure as shown in Figure 2.73: Axial Reference Direction. In this case, define the initial Reference Direction using a cylindrical Rosette and rotate it by 90 degrees as shown below.

Figure 2.73: Axial Reference Direction

Axial Reference Direction
