Slot Editor Graphical View

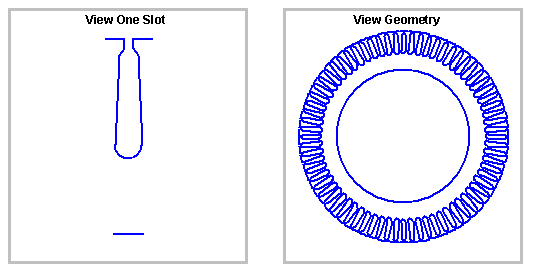

The slot editor graphic view allows users either to View One Slot of the type currently being edited, or to View the Geometry of the machine stator or rotor with all of the slots in place.
Right-clicking anywhere in the graphic view pops up a context menu. In addition to changing the view, the menu provides commands to Zoom In and Zoom Out, to Fit All the view in the frame, as well as commands to Insert, Append, Modify, and Remove slot segments. These commands are discussed more fully in the section on Editing Slot Segments.
