Calculating the Properties for a Nonlinear Permanent Magnet in RMxprt

Nonlinear permanent magnet properties may be specified in one of two ways.

First, a B-H curve may be input directly as follows:

Click the View/Edit Materials… button in the Edit Libraries window.

The View/Edit Material window appears.

The nonlinear B-H curve is defined by setting the Relative Permeability Type either to Nonlinear or Anisotropic.

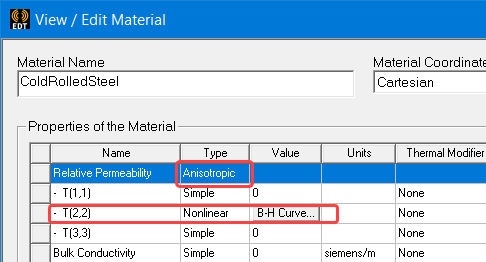

If you select Anisotropic, each of its components can be selected Nonlinear and can be specified by a B-H Curve.

A B-H Curve button appears in the nonlinear property’s Value column

Input the B-H curve by clicking the B-H Curve button in the property Value column.

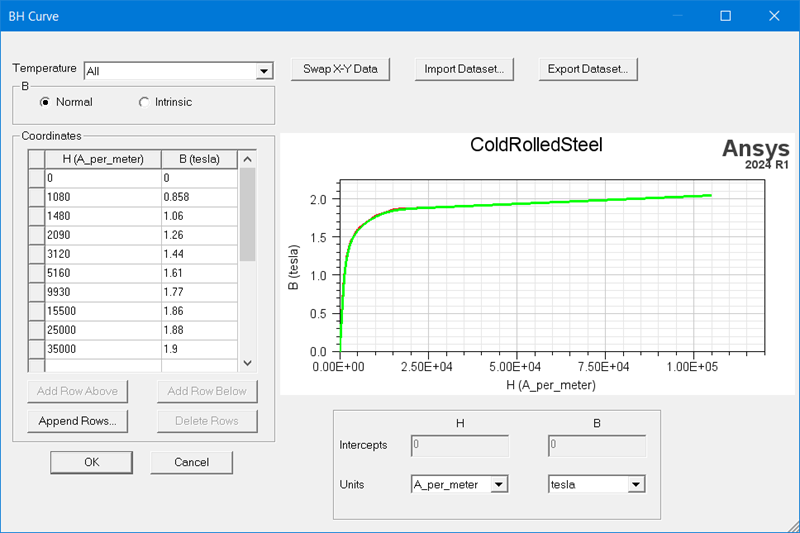

This opens the BH Curve dialog box in which you can input (or modify) curve data. (Refer to Adding Datasets for general information on working with datasets.

For a Normal BH curve, the slope of the curve can not be less than that of free space anywhere along the curve.
For an Intrinsic BH curve, the slope of the curve can not be less than 0.

Note:

The Intrinsic B-H curve is supported only in Maxwell 2D/3D magnetostatic and transient design types. A material property defined using an Intrinsic B-H curve will fail the validation check in all the other product/design types.
When an Intrinsic B-H curve is added, the Relative Permeability Value button label changes to Bi-H Curve as visual indication of the type of curve currently defined for the material.

When you click OK in the dialog box, an error message displays if a slope is out of tolerance, identifying the data points between which the slope is less than that of free space.

The operations to input a nonlinear demagnetization curve are the same as entering a B-H curve for Steel material. When a B-H curve goes through the second quadrant or third quadrant, the curve is treated as a demagnetization curve.

To model temperature dependency for a nonlinear permanent magnet you must

use an Intrinsic B-H curve to model the Relative Permeability.

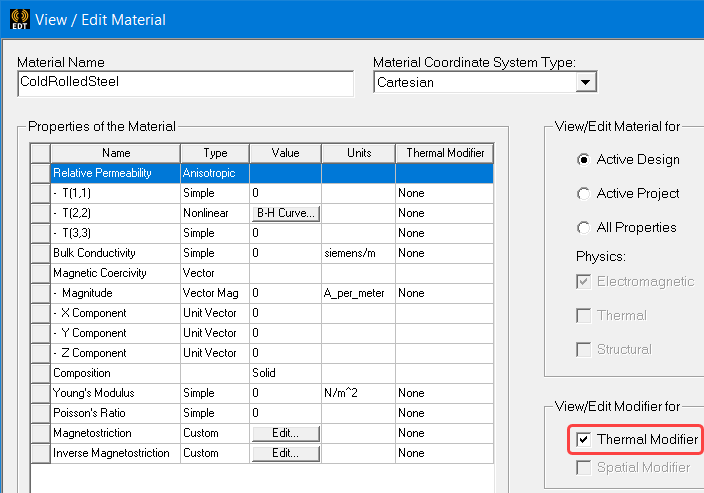

Specify a Thermal Modifier for both Relative Permeability and the Magnitude of Magnetic Coercivity. Apply a thermal Modifier by selecting the Thermal Modifier check box. Checking this box causes the Thermal Modifier column to display at the right side of the Properties of the Material table. Selecting Edit rather than None causes display of the Edit Thermal Modifier dialog box.

Alternatively, a nonlinear B-H curve can be modeled by the following four parameters:

residual flux density B_r
coercive field force H_c
maximum energy product (BH)_max
relative recoil permeability m_r

From the View/Edit Materials window:

Set the Relative Permeability to Nonlinear.

This enables the Calculate Properties for... drop-down menu at the bottom of the window.

Click Nonlinear Permanent Magnet from the drop-down menu.

This displays the Properties for Nonlinear Permanent Magnet dialog box, which contains the following fields into which you enter the appropriate values.

Mur	Provide a value for relative permeability.
Hc	Coercive field force H_c in the units specified. Provide a value and select units from the drop down menu.
Br	Residual flux density B_r in Tesla. If enabled, provide a value and select units from the drop down menu.
BH_max	Maximum magnetic energy product (BH)_max If enabled, provide a value and select units form the drop down menu.

Click OK to close the dialog and return to the View/Edit Materials window.

The values for Relative Permeability and Magnitude under Magnetic Coercivity are updated as new default values. Maxwell will create a look-up table based on the Four-Parameter Curve Fitting algorithm, and update the coordinates of the B-H curve automatically as long as the input data of four parameters pass the validation check.
