Exporting HFSS 3D Layout to Stride Format

HFSS 3D Layout can export Stride projects (*.project) files. Complete these steps to export a Stride .project file.

  1. From Layout, select Export > Stride to open an explorer window.

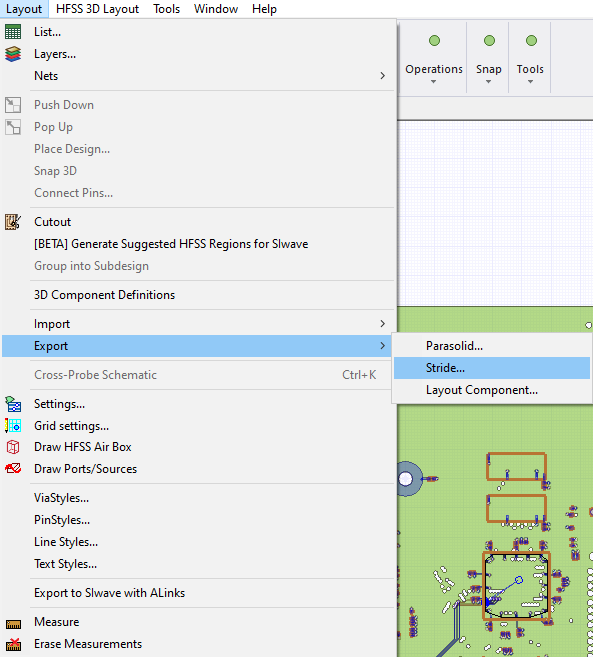

    Layout > Export > Stride...

  2. Navigate to a chosen directory to save the project.

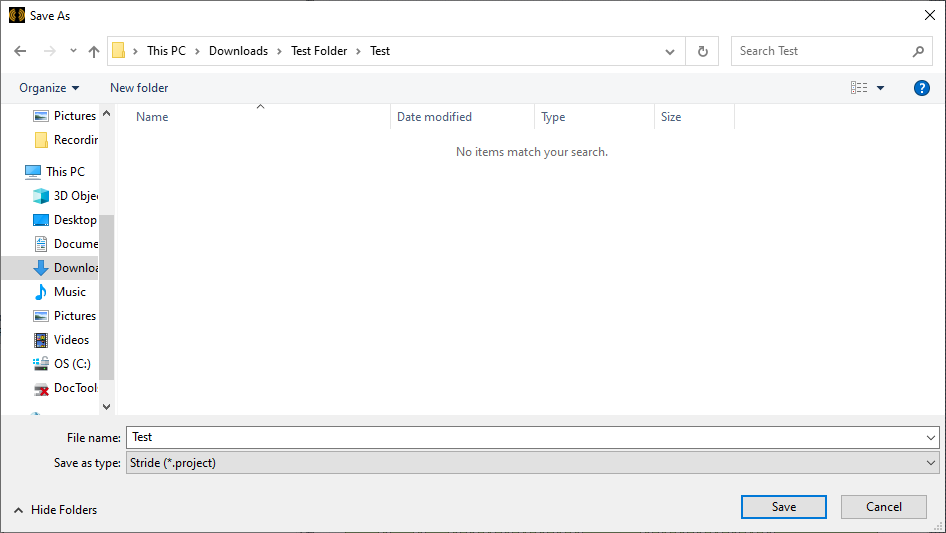

    Explorer Window

  3. Enter a chosen File name.
  4. Click Save.
