Example Toolkits
The Toolkit command in the HFSS menu provides access to a design type specific IronPython script, such as the Hearing Aid Compliance Test, MIMO calculation or a module specific task, such as for Boundary, Excitation, or Solve Setup.
- The Cable modeling toolkits serve automotive cable applications and oil and gas applications.
- Finite Array Beam Angle Calculator toolkit for calculating phase shifts in x and y directions given the scan angles for array elements.
- The Hearing Aid Compliance Test toolkit example involves multiple modules.
- The MIMO example includes a Toolkit script and a User Defined Solution Script.
- The Wavelength Calculator provides a means to calculate wavelengths given frequency or visa versa. It also lists materials in the current model.

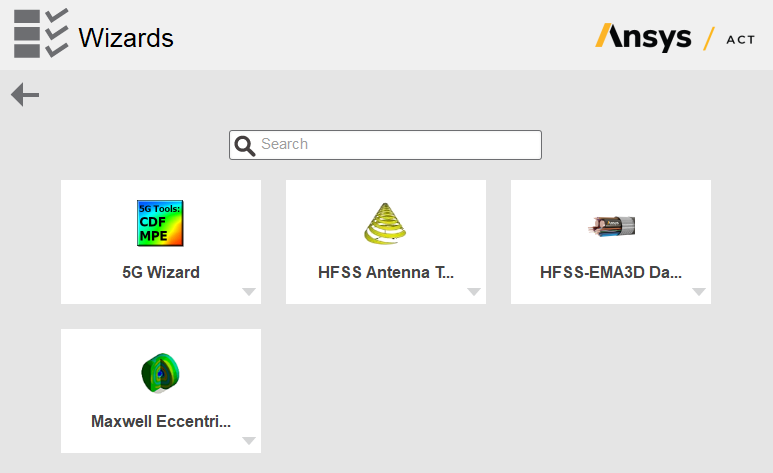

Toolkits implemented in Ansys ACT can be accessed through the View>ACT Extensions command.
- HFSS Antenna Design toolkit
- HFSS - EMA3D Datalink toolkit.
- HFSS RADARpre ACT Toolkit
- HFSS RADARpost ACT Toolkit
- HFSS 5G ACT Toolkit
Note:
The ACT Extensions window and the design wizards it contains (5G Wizard, HFSS Antenna Design Toolkit, HFSS-EMA3D Link, and Maxwell Eccentricities) are only available for the Windows version of the Ansys Electronics Desktop software. These items are not available when the software is installed on a Linux platform.
