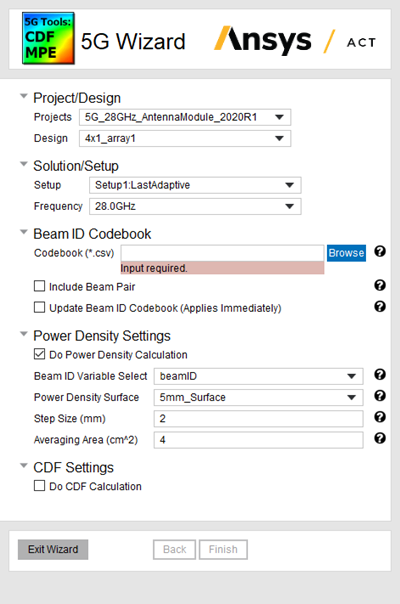

HFSS ACT 5G Wizard

The HFSS 5G ACT Wizard operates on a 5G antenna project with a solution. Given input for a Beam ID Codebook, it provides a set of calculations and reports:

• Calculated maximum permissible exposure (MPE) and Cumulative Distribution Function (CDF) for 5G antenna modules
• Radiation Characteristics Controlled by Codebook
  • Magnitude and phase of antenna ports is defined through external “codebook” csv file
  • Beam ID defines mag and phase on each port
• MPE
  • Power Density (PD, ie. W/m) evaluated on user defined surface
  • Peak and average around peak calculated for each beam ID defined in codebook
• CDF
  • Statistical distribution calculated across beam ID’s for Gain (Total or Realized)
  • Envelope antenna pattern and corresponding beam ID

The Wizard generates several predefined plots:

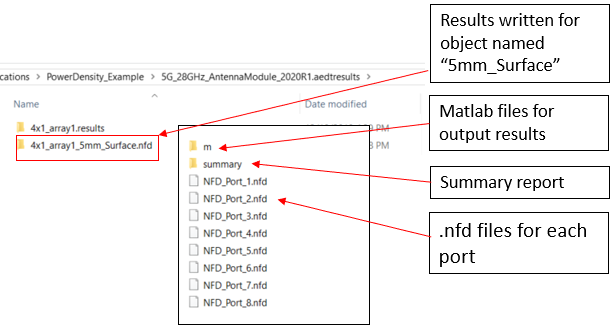

It also creates a set of outputs in the results file:
