Overview

Test Case

The finite element simulation presented in this test case models the three-dimensional (3D) impact of a hollow cylinder (striker) on a flange connected to a long bar (incident bar). The model represents a tensile variation of a testing apparatus known as a Split-Hopkinson Pressure Bar.

The simulation results show the magnitude and duration of the first tensile stress wave transmitted to the bar after impact. These values are validated against calculated values for an identical impact scenario to verify the accuracy of the LS-DYNA explicit solver.

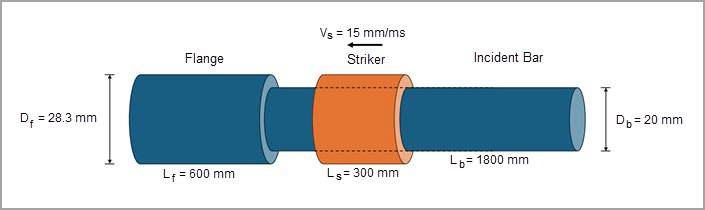

Figure 355 provides a schematic of the test case, showing the incident bar and connected flange as a stepped cylinder and the striker as a hollow cylinder positioned around the incident bar. The striker rests 0.1 mm from the flange and 0.01 mm from the outer surface of the incident bar. The striker has an initial velocity, V_s, of 15 mm/ms toward the flange.

The table that follows shows the corresponding material and geometric properties as well as the loading conditions. The material of both parts is linear elastic and isotropic with typical steel properties.

Figure 355: Test Case Schematic

This test case uses length in mm, time in ms, mass in kg, force in kN, and stress in GPa.

Analysis Assumptions

In the tensile configuration of a Split-Hopkinson Pressure Bar, a tensile stress wave is generated and propagates through the incident bar. This wave is transmitted to the rest of the testing apparatus, which includes the specimen and the transmission bar attached to the incident bar’s end. However, in the current test case, only the tensile stress wave within the incident bar is considered. The specimen and transmission bar are excluded from the analysis.

The striker impacts the flanged section of the incident bar, generating two primary stress waves: a compressive stress wave through the flange (moving right to left) and a tensile stress wave through the incident bar (moving left to right).

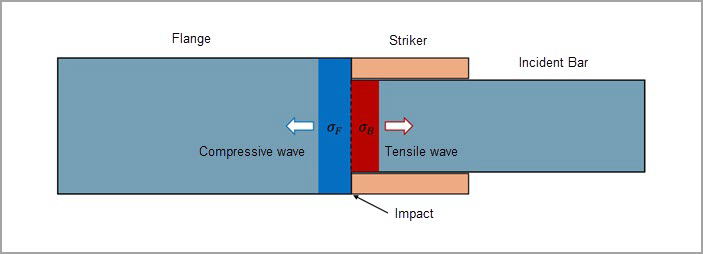

Figure 356 illustrates the propagation of this tensile stress wave moments after impact.

Figure 356: Stress Wave Propagation through the Flange and Incident Bar

When waves reach the end of a given structure, they reflect back in the opposite direction. After the striker impacts the flange, the total length of the resulting compressive wave traveling through the striker and reflecting back is then twice the length of the striker (). Therefore, if the length of the flange () is shorter than that of the striker (), the first wave reflected back through the flange would combine with the first tensile stress wave in the incident bar. In the current test case, the length of the flange is twice that of the striker (), so the waves do not combine.

The duration period of the first stress wave at a fixed particle in the incident bar () can be calculated using the striker’s length () and the speed of sound in the material ():

(111)

The speed of sound in the material () can be calculated using its Young’s modulus () and density (). Material properties for the current test case are included in the test case description.

(112)

The resulting speed of sound for the steel-like material used in this test case is 5,189 mm/ms. Therefore, using Equation 111, the duration period () of the first stress wave in the incident bar is 0.1156 ms.

To calculate the magnitude of the first bar wave (), Equation 113 is used to obtain the force equilibrium at the impact plane.

(113)

Where:

represents the axial stress of the striker (), flange (), and incident bar ().

represents the cross-sectional area of the striker (), flange (), and incident bar ().

Using momentum conservation, the axial stress of each component (, , ) caused by an impact can be calculated using Equation 114:

(114)

Where:

is the change of velocity in the structure's particles.

Immediately after the impact, the particle velocity at the impact plane, , is the same for the three structures. Since the rest of the striker is moving with a velocity of , its velocity change is . Substituting Equation 114 in Equation 113:

(115)

The acoustic impedance of a structure ( ) is calculated as the product of its cross-sectional area ( ), its density ( ), and the speed of sound in the material ( ). Therefore, the particle velocity can be obtained:

(116)

(117)

The magnitude of the tensile stress in the incident bar can then be calculated by substituting equation Equation 117 in Equation 113:

(118)

Therefore, the magnitude of the first stress wave transmitted to the incident bar is 0.1518 GPa.

Modeling Notes

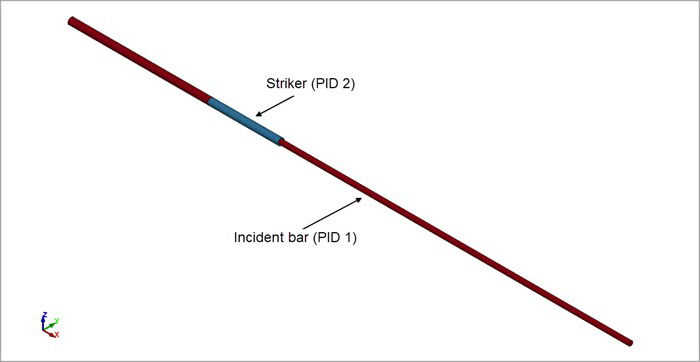

Figure 357: Model Setup

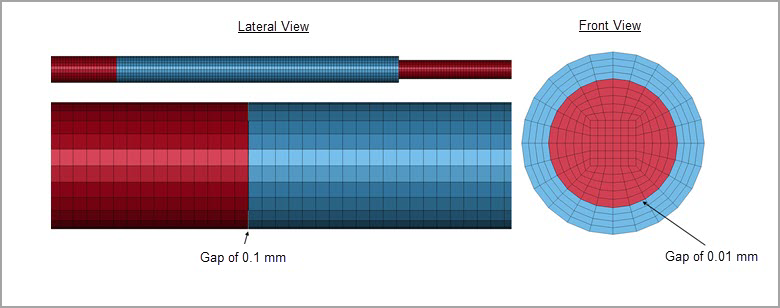

Figure 358: Mesh Details for the Incident Bar (Red) and Striker (Blue)

In the simulation, two parts are defined: one to represent the incident bar with flange (PID 1) and another to represent the striker (PID 2). These parts are meshed with 3D hexahedral elements with a length of 3 mm in the axial direction and variable lengths in the cross-section. The parts use a constant stress solid element formulation (*SECTION_SOLID with ELFORM=1) and an elastic material card (*MAT_ELASTIC) with density of 7.8⋅10^-6 kg/mm³, Young’s modulus of 210 GPa, and Poisson’s ratio of 0.3.

The contact definition between the striker and the flange is defined with the keyword *CONTACT_AUTOMATIC_SURFACE_TO_SURFACE using the segment-to-segment contact penalty formulation (SOFT=2) for increased stability. The initial velocity of the striker is defined using the keyword *INITIAL_VELOCITY_GENERATION with a translational velocity in global x-direction of -15 mm/ms.

The keyword *CONTROL_TERMINATION is used to define the termination time of 0.6 ms.

Results Comparison

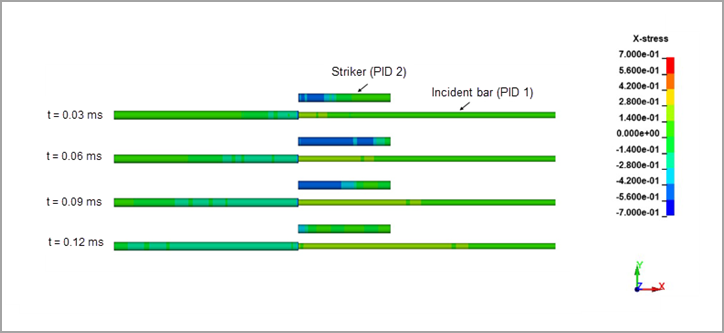

Figure 359 below shows the x-stress contour plot for the incident bar and striker at different timesteps. The plot illustrates that the compressive stress wave moves through the striker and reflects back during the initial 0.12 ms. Meanwhile, a compressive stress wave propagates through the flange and a tensile stress wave propagates through the incident bar with magnitudes lower than the striker stress.

Figure 359: Axial Stress (GPa) at Different Timesteps

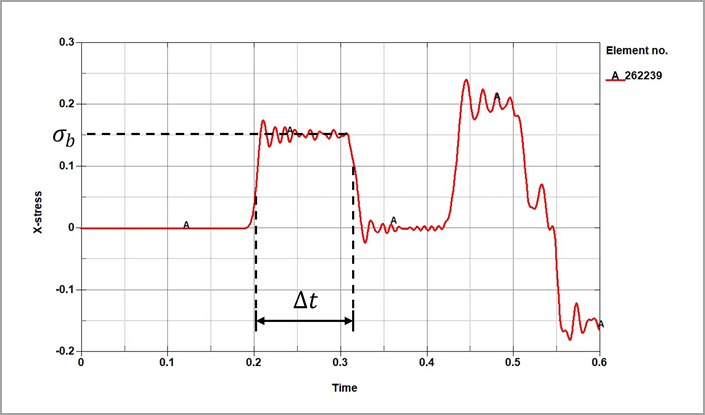

To validate the model and verify the accuracy of the LS-DYNA explicit solver, the magnitude and duration of the first tensile stress wave transmitted through the incident bar resulting from the simulation were compared to the analytical solution. For this purpose, an element located at 1,000 mm from the impact surface (x-coordinate) in the incident bar is used to track the variation of x-stress and calculate the wave magnitude and period. Figure 360 shows the x-stress (GPa) for the bar element versus time (ms).

Figure 360: Axial Stress (GPa) of Incident Bar Element Versus Time

To quantify the error between the analytical and LS-DYNA solutions, the magnitude and period of the first tensile stress wave and their relative errors are calculated in the following results table. For the LS-DYNA model, the stress magnitude is calculated by averaging the stress values between the first and last local peaks of the stress wave. The time period is calculated between two points located in the middle of the pulse rise and fall. As shown in the results table below, the average stress magnitude is calculated as 0.1517 ± 0.0078 GPa, and the wave is experienced during 0.1170 ms. The results show excellent agreement with the analytical solution.

Results	Target	LS-DYNA Solver	Error (%)
Magnitude () of the first tensile elastic stress wave (GPa)	0.1518	0.1517	0.03
Time period () of the first tensile elastic wave (ms)	0.1156	0.1170	1.19
