11.3.4. File Generation Properties

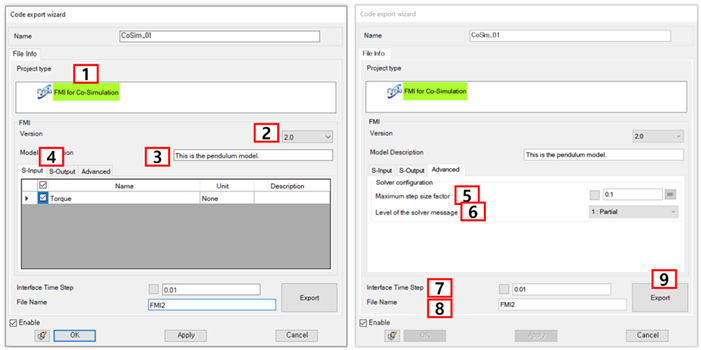

Figure 11.23: File Generation property dialog

Figure 11.24: File Generation property dialog

Parameter	Symbol	Description	Dimension (Range)
1. Project type	N/A	This represents the method of co-simulation.	N/A
2. Version	N/A	This represents the FMI supported version.	N/A
3. Model Description	N/A	This represents the model description.	N/A
4. S-Input/S-Output List	N/A	This represents list of pre-defined S-Input and S-Output	N/A
5. Maximum step size factor	N/A	You can change the level of the maximum step size before co-simulation using this parameter (see Figure 11.25: Maximum Step Size Factor below): `Max. step size` = `Interface time step` * `Maximum step size factor` For more information, see Dynamic Parameters for Simulation Configuration.	N/A (0.01 ≤ Real ≤ 1.0)
6. Level of the solver message	N/A	You can change the message level before co-simulation using this parameter, as follows: 0 : None - No messages regarding co-simulation are written 1 : Partial - Only co-simulation progress is recorded 2 : Full - All messages regarding co-simulation are written	N/A
7. Interface time step	N/A	This represents the communication time step between the master tool and Motion. This field shows the default Motion value, but when performing co-simulation, the value set in the master tool is used.	Time (Real > 0.0)
8. File name	N/A	This represents the name of the export file.	N/A
9. Export	N/A	Use to export the FMI file.	N/A

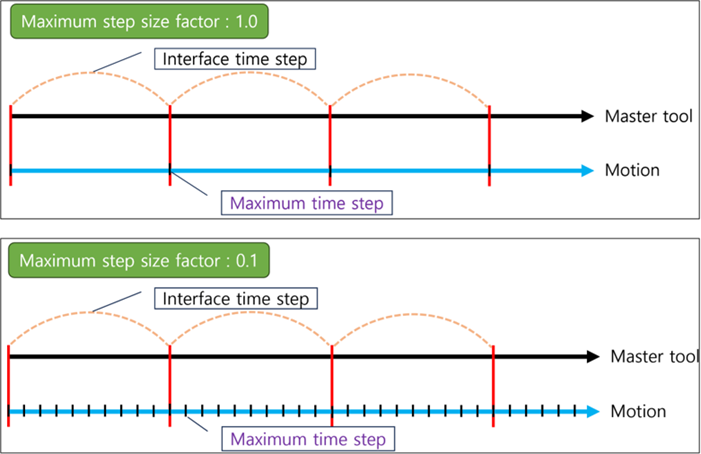

Figure 11.25: Maximum Step Size Factor

If the value of the Maximum step size factor is set to 1.0, the Maximum step size for Motion is equal to the Interface time step.

If the value of the Maximum step size factor is set to 0.1, the Maximum step size for Motion is equal to one tenth of the Interface time step.
