8.1.2. Window Layout for Sub-Entities

It is possible to dock sub-entity windows with other windows, so windows can be located as required. They can be reset back to the default location through the Reset Window Layout option in the Window menu on the Home ribbon. The windows for sub-entities have a general layout as shown in the figure below. The window consists of a Sub-Entity Properties list and associated properties. There are some sub-entities which do not have properties, as shown in the table below.

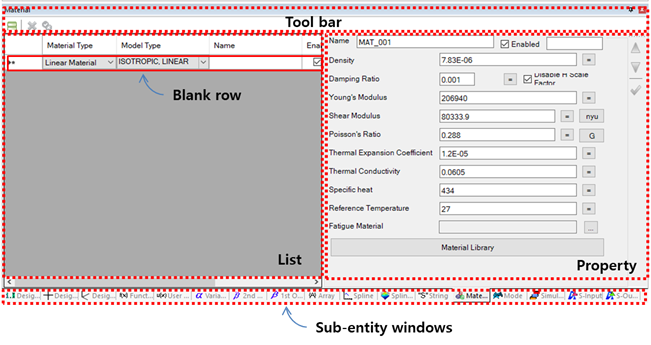

Figure 8.7: Sub-entity window layout

Sub-entity window layout
