5.1.4. Location in the Subsystem Navigator

When a constraint entity is created, it is located under the Joint, Coupler, or FE Constraint category in the Subsystem Navigator as shown in the figures below.

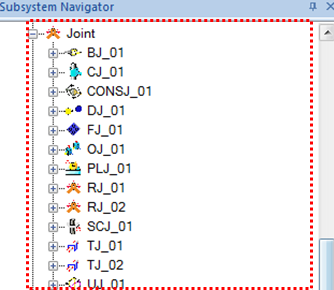

Figure 5.11: Location of idealized joint and primitive joint in the subsystem navigator

Location of idealized joint and primitive joint in the subsystem navigator

Figure 5.12: Location of couplers in the subsystem navigator

Location of couplers in the subsystem navigator

Figure 5.13: Location of boundary conditions in the subsystem navigator

Location of boundary conditions in the subsystem navigator
