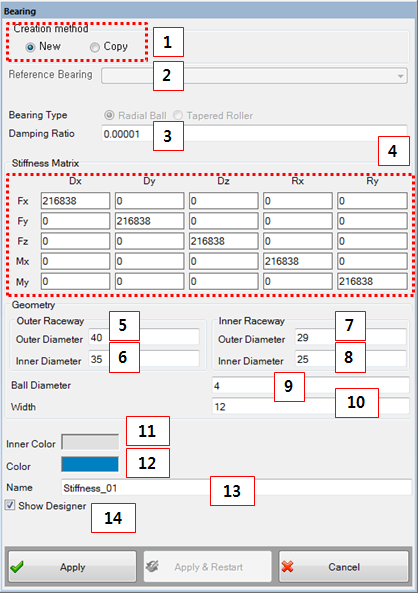

Figure 14.228: Parameters in the Stiffness bearing creation dialog
| Parameter | Description |
Dimension (Range) |
| 1. Creation Method | Use to set creation method. If you select the New type, you must input all the bearing specifications. If you select the Copy type, select a bearing which has already been created . | N/A |
| 2. Reference Bearing |
Use to set the reference bearing with the Copy creation method. | N/A |
| 3. Damping Ratio | Use to set the damping ratio. | Angle |
| 4. Stiffness Matrix | Use to set the stiffness matrix. | Length |
|
5. Outer diameter (Outer raceway) |
Use to set the outer diameter of the outer raceway. This parameter is used for only geometry creation. | Length |
|
6. Inner diameter (Outer raceway) |
Use to set the inner diameter of the outer raceway. This parameter is used for only geometry creation. | Length |
|
7. Outer diameter (Inner raceway) |
Use to set the outer diameter of the inner raceway. This parameter is used for only geometry creation. | Length |
|
8. Inner diameter (Inner raceway) |
Use to set the inner diameter of the inner raceway. This parameter is used for only geometry creation. | Length |
| 9. Ball Diameter |
Use to set the ball diameter. This parameter is used for only geometry creation. | Length |
| 10. Width |
Use to set the width. This parameter is used for only geometry creation. | Length |
| 11. Inner Color | Use to set the inner raceway color. | N/A |
| 12. Color | Use to set the outer raceway color. | N/A |
| 13. Name | Use to set the name. | N/A |
| 14. Show Designer | Use to open the designer automatically. | N/A |
