From the Swept-Sine Actuator property dialog, the parameters of the swept-sine forcing function can be modified as shown in the figure and table below.

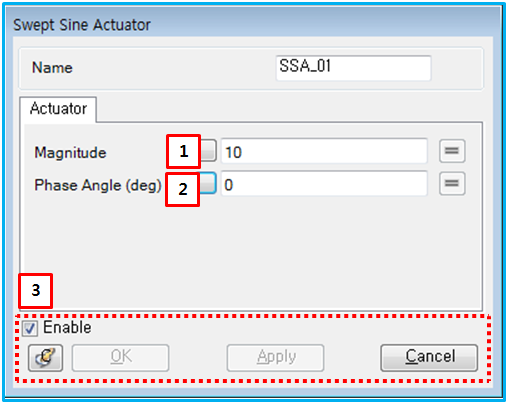

Figure 13.11: Description of parameters in the Swept-Sine Actuator property dialog
| Parameter | Symbol | Description | Dimension (Range) |
| 1. Magnitude | N/A | Use to set magnitude of swept-sine forcing function. |
Force (Real>0) |
| 2. Phase Angle | N/A | Use to set phase angle of swept-sine forcing function. |
Degree (Real>=0) |
| 3. Control buttons | N/A | If all necessary parameters are set, the buttons are enabled. If you want to know the control buttons, refer the Entity Properties Access and Modification. | N/A |
