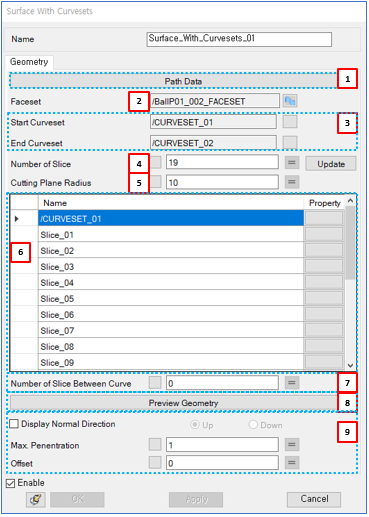

Figure 3.76: Description of parameters in the Surface With Curvesets properties dialog
| Parameter | Symbol | Description |
Dimension (Range) |
| 1. Path Data | N/A | When you create a curveset, this is used to set the *.csv file that contains the center axis path information. | N/A |
| 2. Faceset | N/A | Use to change the faceset used in the curveset creation. | N/A |
| 3. Start / End Curveset | N/A | Use to change the start and end position of the curveset. | N/A |
| 4. Number of Slice | N/A | Use to change the number of slices when creating the curveset. |
N/A (Integer>0) |
| 5. Cutting Plane radius | N/A | Use to change the radius value of the cutting face |
Length (Real>0) |
| 6. Slice / Curveset List | N/A | Use to change the properties of the slices. | N/A |
| 7. Number of Slice Between.. | N/A | Use to change the number of slices that are to be created between a cut set with a cut face. |
N/A (Integer>0) |
| 8. Preview Geometry | N/A | Use to see a preview of the Surface with Curvesets. | N/A |
| 9. Faceset Property | N/A | Use to change the parameters of the created Surface with Curvesets. | N/A |
