From the Rotating Mass Actuator property dialog, the parameters for the rotating mass forcing function can be modified as shown in the figure and table below.

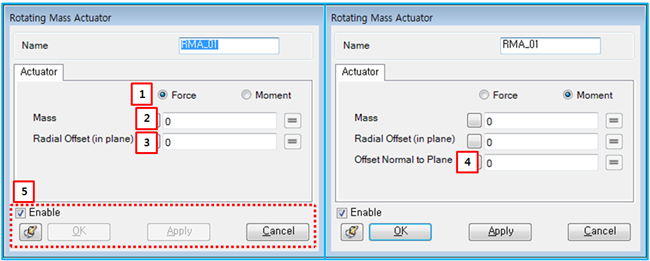

Figure 13.17: Description of parameters in the Rotating Mass Actuator property dialog
| Parameter | Symbol | Description | Dimension (Range) |
|
1. Force or Moment | N/A | Use to set type of rotating-mass forcing function. | N/A |
| 2. Mass | N/A | Use to set unbalance mass. |
Mass (Real>0) |
| 3. Radial Offset | N/A | Use to set radial distance of the unbalance mass from the axis of rotation. |
Length (Real>0) |
| 4. Offset Normal to Plane | N/A | Use to set distance of the unbalanced mass perpendicular to the plane. |
Length (Real>0) |
| 5. Control buttons | N/A | If all necessary parameters are set, the buttons are enabled. If you want to know the control buttons, refer the Entity Properties Access and Modification. | N/A |
