Force parameters are defined in the Pressure Load property dialog as shown in the figure and table below.

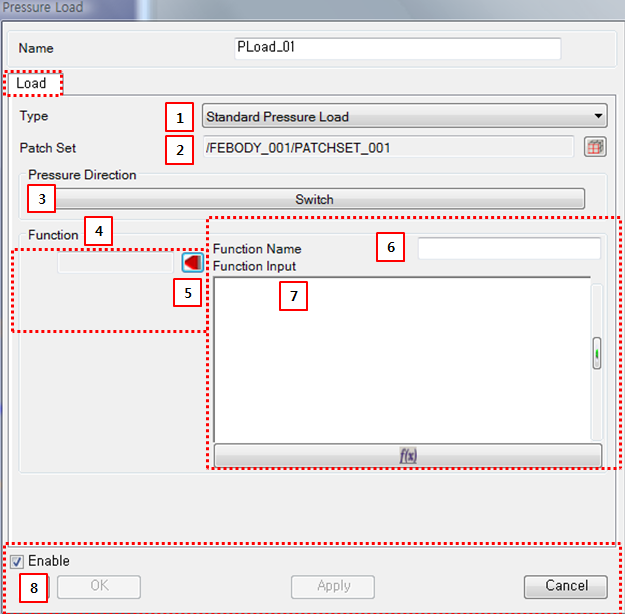

Figure 6.45: Pressure Load property dialog

Figure 6.46: Description of parameters in the Pressure Load property dialog

Parameter	Symbol	Description	Dimension (Range)
1. Type	N/A	Use to set the force and torque type. When Standard Pressure Load is selected, the force and torque are defined by a Function Expression. When User Subroutine Pressure Load is selected, the force and torque are defined by a specified User Subroutine. For more information, refer to Pressure Load User Subroutine.	N/A
2. Patchset	N/A	Use to select a Patchset using the Patchset Picker.	N/A
3. Pressure Direction	N/A	Use to define the direction of pressure. By default, the inward direction will be displayed on the screen. If you click the Switch button, the direction will be changed to outward.	N/A
4. Function	,	Use to set the function to define pressure. If the function is not defined, the pressure will be zero.	Force / Length^2
5. Function Manager	N/A	Open or close Function Expression. When the   button is clicked, Function Manager is opened. When the   button is clicked, Function Manager is closed.	N/A
6. Function Name	N/A	Use to set the name of the Function Expression. For more information on usage, refer to Function Expression Operation.	N/A
7. Function Input	N/A	Use to input the Function Expression. For more information on usage, refer to Function Expression Operation.	N/A
8. Control buttons	N/A	If all necessary parameters are set, these buttons are enabled. For more information about the control buttons, refer to Entity Properties Access and Modification.	N/A
