Since a Patchset is required in the Pressure Load creation dialog, the Patchset must be created before creating the force. Parameters in the dialog are as shown in the figure and table below.

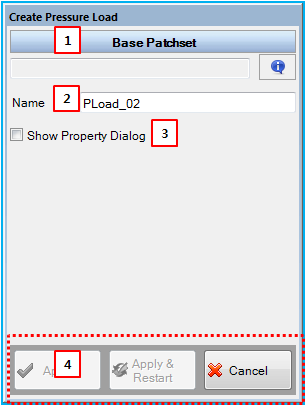

Figure 6.44: Description of parameters in the Pressure Load creation dialog
| Parameter | Description |
| 1. Base Patchset | Use to select a Patchset using the Patchset Picker. Pressure is applied on the patches belonging to the Patchset. |
| 2. Name | Use to set the name of the Pressure Load. |
| 3. Show Property Dialog | Use to open the property dialog after finishing the creation operation. |
| 4. Control buttons | If all necessary parameters are set, these buttons are enabled. For more information about the control buttons, refer to Entity Creation. |
