The gear information which is added to the Shaft Set is shown in the Meshing tab. In order to modify the specification, you must check the meshing status in this tab.

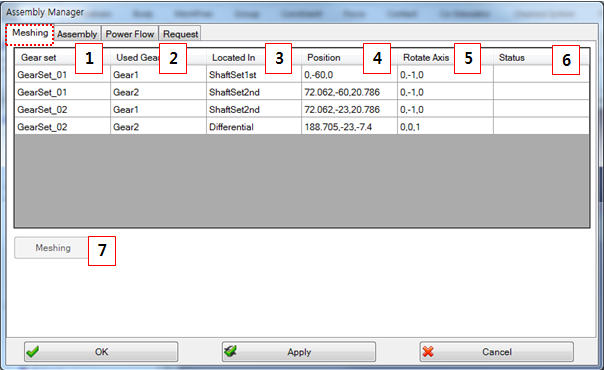

Figure 14.278: Parameters in the Assembly Manager Meshing tab
| Parameters | Description |
| 1. Gear Set | Show the gear set which is added its gear to the Shaft Set or housing. |
| 2. Used Gear | Show the added gear. |
| 3. Located in | Show the Shaft Set or housing which is include gear. |
| 4. Position | Show the gear position in the global reference frame. |
| 5. Rotate Axis | Show the gear rotating axis. |
| 6. Status | Show the meshing status. |
