Before creating a Cycloidal Reducer, a cycloid-pin must be created in advance. For example, if your model needs two cycloid disks, you should create two cycloid-pins.

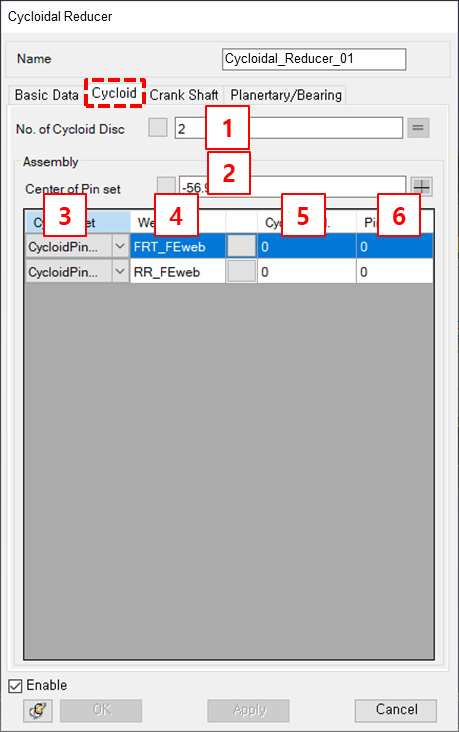

Figure 14.298: Cycloid tab parameters
| Parameter | Description | Dimension |
| 1. No. of Cycloid Disc |
Use to set the number of cycloid discs. This parameter determines the number of rows in the Cycloid Set column. | N/A |
| 2. Center of Pin set |

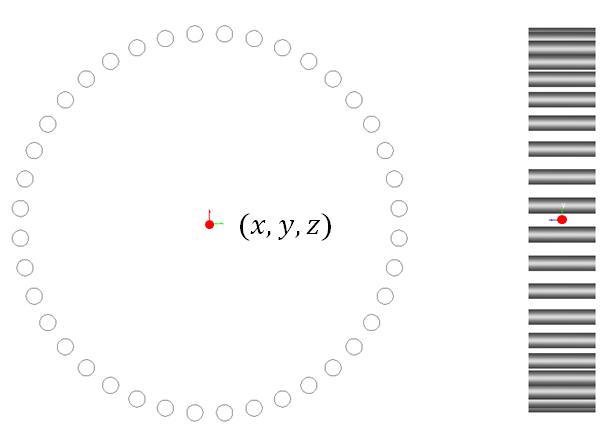

Use to set the center position of the pin set.
| N/A |
| 3. Cycloid Set | Use to select the cycloid pin (created in advance). | N/A |
| 4. Web | Use to set the web of the cycloid disc. This web should be created in advance by using a FE Shaft Set. | N/A |
| 5. Cycloid tol |
Use to set the manufactured tolerance of the cycloid disc.
| N/A |
| 6. Pin tol |
Use to set the manufactured tolerance of the pin.
| N/A |
