This tab allows the input of crank shaft specifications. If you input specifications of one crank shaft, the other crank shafts are created automatically with the same parameters.

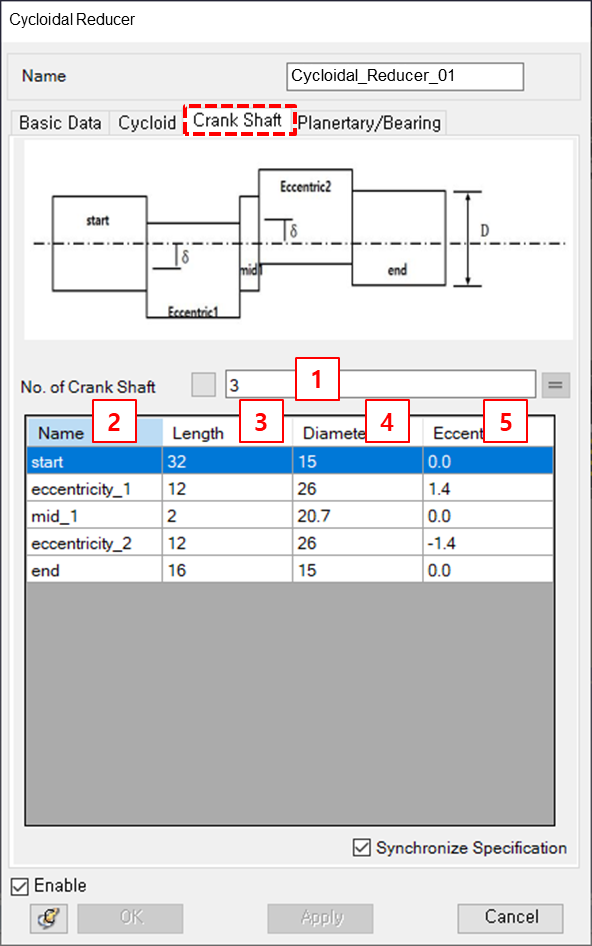

Figure 14.300: Parameters on the Crank Shaft tab
| Parameter | Description | Dimension |
| 1. No. of Crank Shaft | Use to set the total number of crank shafts in the Cycloidal Reducer. | N/A |
| 2. Name | Use to set the name of each section. | N/A |
| 3. Length | Use to set the length of each section. | N/A |
| 4. Diameter | Use to set the diameter of each section. | N/A |
| 5. Eccentricity | Use to set the eccentricity of each section. | N/A |
