N Combination Contact creates multiple contacts by selecting rigid bodies, facesets, patchsets and edgesets. When a faceset, patchset and edgeset are simultaneously selected as the contact geometry, only is available as the contact type. The parameters for N Combination Contact creation are introduced in the figure and table below.

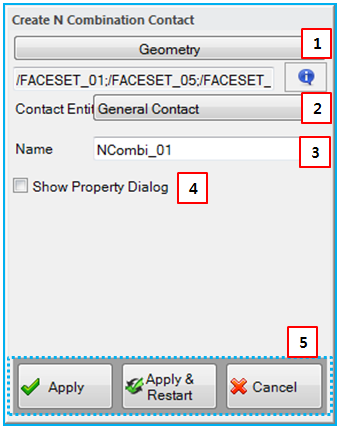

Figure 4.32: Description of parameters in the N Combination Contact creation dialog
| Parameter | Description |
| 1. Geometry | Use to set contact geometries using the MultiGeneral Picker. Faceset, patchset and edgeset are available. If faceset, patchset and edgeset are simultaneously selected, only is available. |
| 2. Contact Entity | Use to set the type of contact. , , and are available. |
| 3. Name | Use to set the name of the N Combination Contact object. |
| 4. Show Property Dialog | Use to open the property dialog after finishing the creation operation. |
| 5. Control buttons | If all necessary parameters are set, these buttons are enabled. For more information about the control buttons, refer to Entity Creation. |
