A target entity on which Convection is applied is defined in the Convection creation dialog as shown in the figure and table below. The target entity must be created before creating the Convection entity.

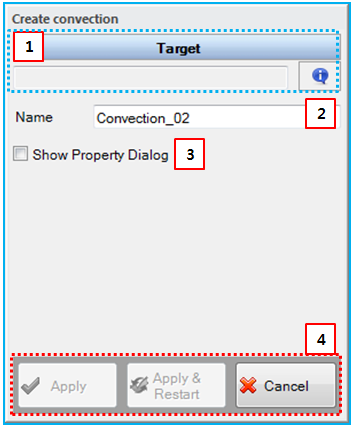

Figure 15.15: Description of parameters in the Convection creation dialog
| Parameter | Description |
| 1. Target | Use to set a target on which the convection is applied by General Picker. The target can be defined as the patchset or faceset. |
| 2. Name | Use to set a name of Convection. |
| 3. Show Property Dialog | Use to open the property dialog after finishing the creation operation. |
| 4. Control buttons | If all necessary parameters are set, the buttons are enabled. If you want to know the control buttons, refer to Entity Creation. |
