The shuttling force is a force change at bearings by the tilting moment due to the centroid shift of the mesh force along the tooth face width. The shuttling force can be performed as following steps.

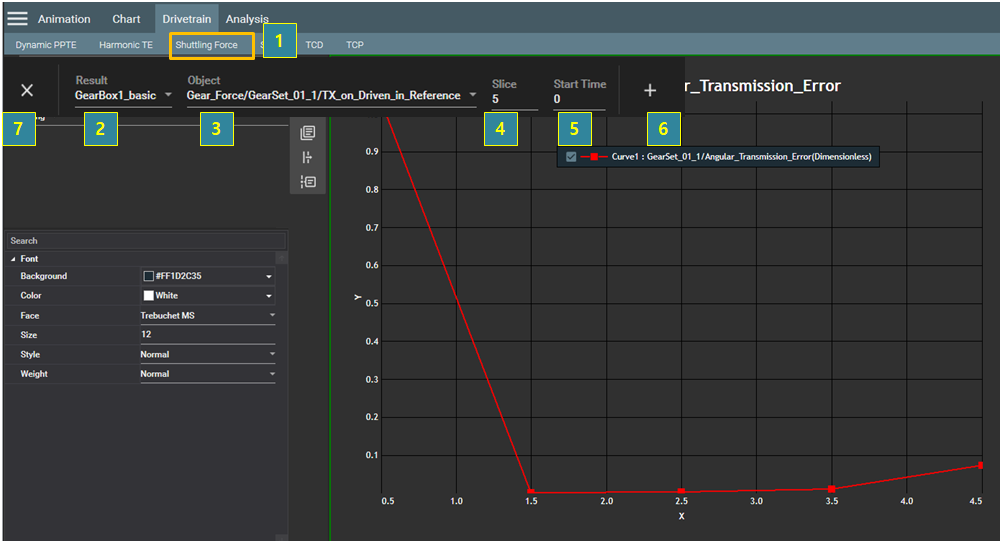

Figure 4.48: Steps for "Shuttling Force"
| Step | Description |
| 1 | Click in the menu bar. |
| 2 | Under Result, select the DFR filename. |
| 3 | Under Object, select the gear moment of TX or TY and the applied driving or driven body. |
| 4 | Set the Slice. See the definition for slice in Dynamic PPTE. |
| 5 | Set the Start Time to determine the time interval. |
| 6 | Click the  button to create the graph. |
| 7 | Click the  button to close the operation. |
