4.8.1. Dynamic PPTE

The Dynamic peak to peak transmission error (DPPTE) is one of the important values to verify the gear design under variable driving conditions.

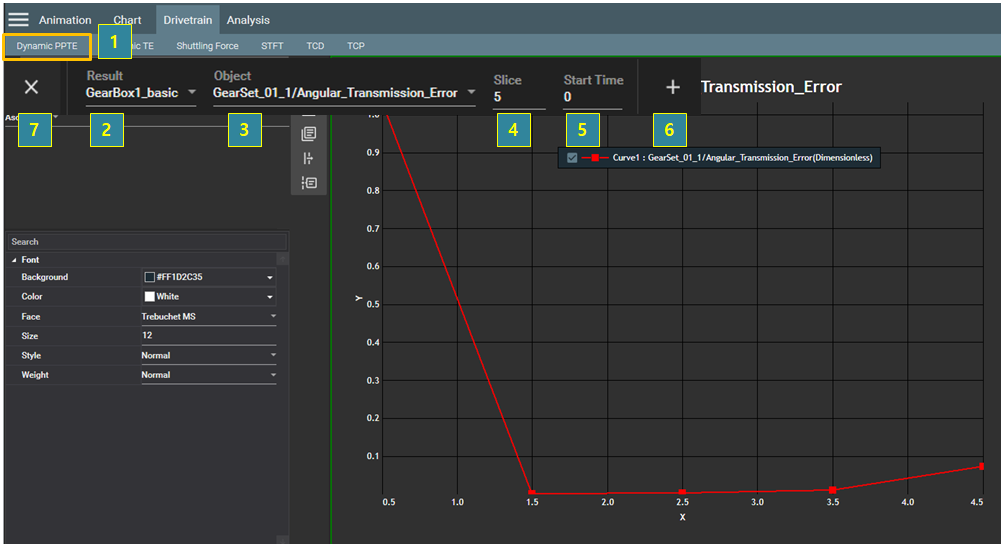

Figure 4.44: Steps for Dynamic PPTE

Step Description
1Click Dynamic PPTE in the menu bar.
2Under Result, select the DFR filename.
3Under Object, select the transmission error type and gear set.
4

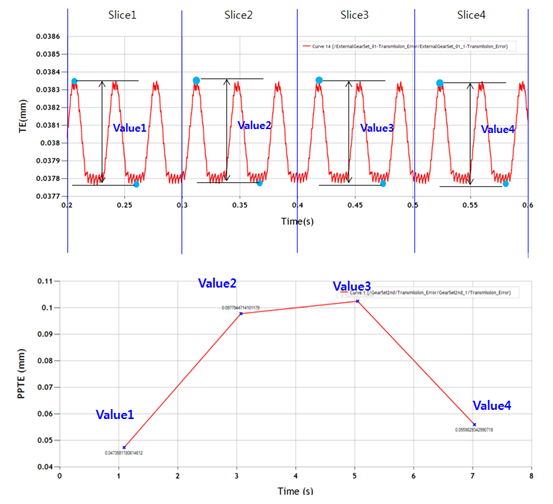

Set the Slice which determines the time interval to find a peak as shown in the example below.

Steps for Dynamic PPTE

5Set the Start Time to determine the time interval.
6Click the Steps for Dynamic PPTE  button to create the graph.
7Click the Steps for Dynamic PPTE  button to close the operation.

Figure 4.45: Dynamic PPTE

Dynamic PPTE
