44.2. Problem Description

44.2.1. Rectangular Block with a Semicircular Surface Flaw

A Semi-Elliptical Crack object is used to simulate a semicircular surface flaw in a rectangular block. The semicircular surface flaw with a 20 mm radius is located at the center of one longitudinal face of the rectangular block. The crack is perpendicular to the block's longitudinal faces and lies in its thickness direction as shown in Figure 44.1: Rectangular Block Geometry with Semicircular Surface Flaw. A torus is required around the crack front to control the mesh at the crack front.

The crack front and torus around crack front are simulated with a Semi-Elliptical Crack object. This model is fixed at one face of the block, and a pressure load is applied on the opposite face.

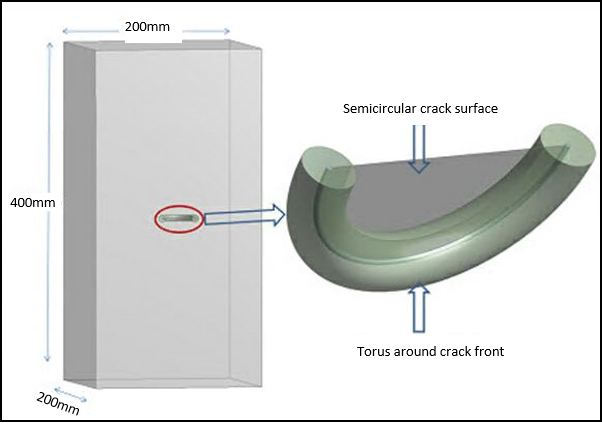

Figure 44.1: Rectangular Block Geometry with Semicircular Surface Flaw

Rectangular Block Geometry with Semicircular Surface Flaw

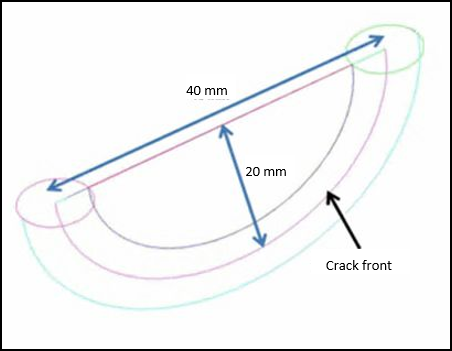

Figure 44.2: Semicircular Surface Crack Dimensions

Semicircular Surface Crack Dimensions

44.2.2. X-Joint Pipe with Warped Surface Flaw

A semi-elliptical warped surface flaw at the tubular joint is simulated with a Pre-Meshed Crack object to obtain the C*-integral along the crack front.

The geometry consists of two tubular members (Tube 1 and Tube 2) attached to each other by a welded joint. The tubular members have outer diameters of 323.85 mm (D1), 219.08 mm (D2), and thicknesses of 15.88 mm (t1) and 8.18 mm (t2), respectively. The semi-elliptical surface crack lies on a plane parallel to the radial direction of the heavier running pipe as shown in the figure below.

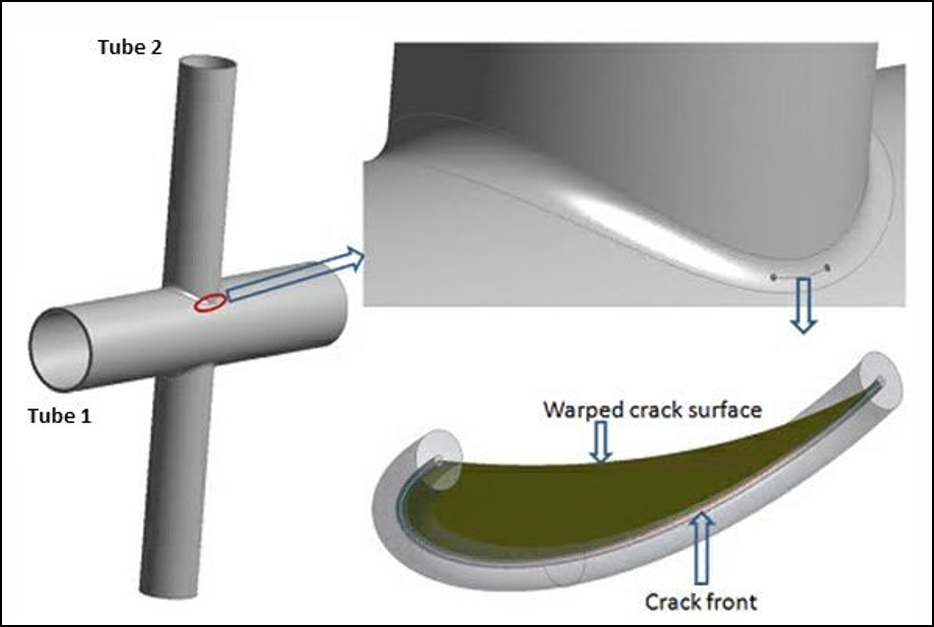

Figure 44.3: X-Joint Pipe Full Model with Warped Surface Flaw at Welded Joint

X-Joint Pipe Full Model with Warped Surface Flaw at Welded Joint

The semi-elliptical surface crack at the weld toe is warped along the welded joint, and it is perpendicular to the outer surface of the 323.85 mm diameter pipe in the thickness direction. Because of the two-plane symmetry inherent to the X-joint problem, a quarter model is analyzed. The crack front and torus around the crack have already been specified in the external mesh file.

Figure 44.4: Semi-elliptical Surface Crack Dimensions

Semi-elliptical Surface Crack Dimensions
