A nonlinear static analysis is performed in three load steps. Large Deflection property is set On in the analysis.

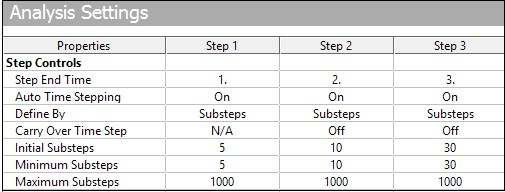

Figure 26.18: Step Controls Used

Figure 26.19: Set Large Deflection On and Stabilization Off
