Bending of a Composite Beam
Overview
| Reference: |
Roark.R.J. & Young.W.C. (1975). Formulas for Stress and Strain. New York, NY: McGraw-Hill Book Co., Inc. |
| Solver(s): |
Ansys Mechanical |
| Analysis Type(s): | Static Analysis |
| Element Type(s): | Solid |
Test Case

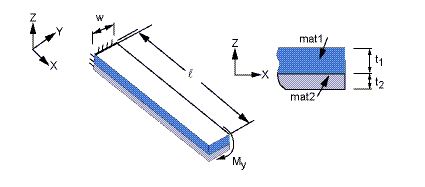

A beam of length
and width w made up of two layers
of different materials is subjected to a uniform rise in temperature
from Tref to To, and
a bending moment My at the free-end. Ei and α
i correspond to the Young's modulus and thermal
coefficient of expansion for layer i, respectively.
Determine the free-end displacement δ (in the Z-direction) and the X-direction stresses at the top and bottom surfaces of the layered beam.
This problem is also presented in VM144
in the Mechanical APDL Verification Manual.
| Material Properties | Geometric Properties | Loading | ||||
|---|---|---|---|---|---|---|
|
MAT1:
MAT2:
|
w = 0.5 in t1 = 0.2 in t2 = 0.1 in |
To = 100°F Tref = 0°F My = 10.0 in-lb |
