VM-WB-MECH-017

VM-WB-MECH-017
Thermal Stress Analysis with Remote Force and Thermal Loading

Overview

Reference:	Any basic Strength of Materials book
Solver(s):	Ansys Mechanical
Analysis Type(s):	Linear Thermal Stress Analysis
Element Type(s):	Solid

Test Case

A cylindrical rod assembly of four cylinders connected end to end has frictionless support applied on all the cylindrical surfaces and both the flat end faces are fixed. Other thermal and structural loads are as shown below.

Find the Deformation in the x direction of the contact surface on which the remote force is applied. To get accurate results apply a global element size of 1.5 m.

Material Properties

Geometric Properties

E = 2 x 10¹¹ Pa

ν = 0

α = 1.2 x 10^-5/°C

Diameter = 2 m

Lengths of cylinders in order from End A: 2 m, 5 m, 10 m, and 3 m.

Given temperature (End A) = 1000°C

Given temperature (End B) = 0°C

Remote force = 1 x 10¹⁰ N applied on the contact surface at a distance 7 m from end A.

Location of remote force = (7,0,0) m

Analysis Assumptions and Modeling Notes for Ansys Mechanical

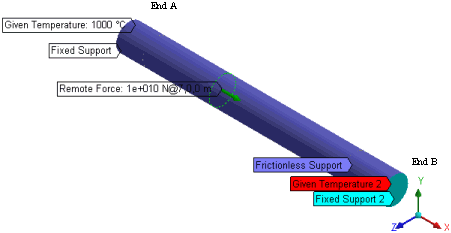

The following figure shows the finite element model in Ansys Mechanical:

Figure 18: Ansys Mechanical Schematic

Results Comparison for Ansys Mechanical

Results	Target	Mechanical	Error (%)
Maximum X Deformation (m)	0.101815	0.10001	-1.773
