To start CFD-Post and read the results files saved by Ansys Polyflow, double-click the CFD-Post file: cfx.resf under Outputs in the Ansys Polyman list tree.

CFD-Post will read the mesh information, then the solution fields that were saved to the results file.

The CFD-Post environment is displayed in Figure 4.35: The CFD-Post Environment.

Figure 4.35: The CFD-Post Environment

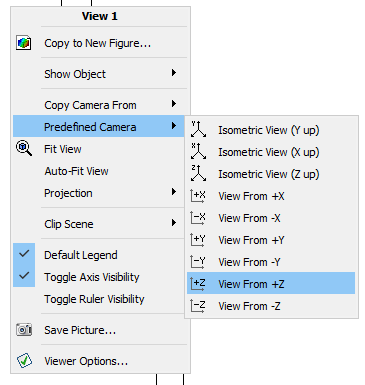

To align the view, right-click the graphics window to display the context menu, then choose Predefined Camera and View From +Z.

Figure 4.36: Aligning the View Using the Context Menu

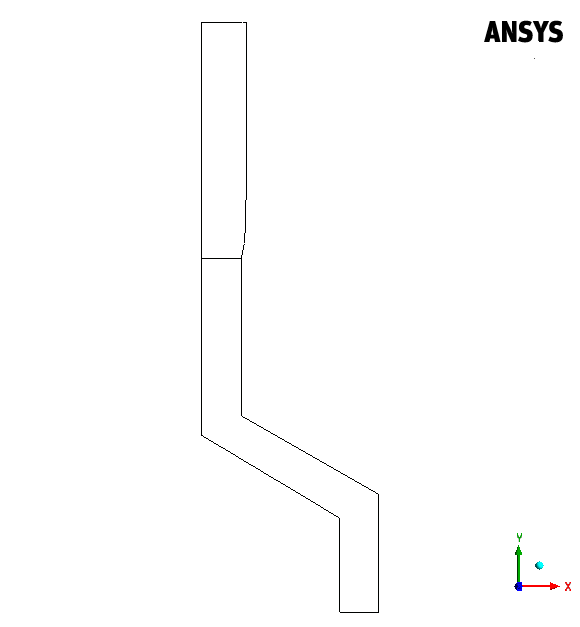

The new view alignment is displayed in the graphics window (Figure 4.37: Viewing the New Alignment of the Geometry).

Figure 4.37: Viewing the New Alignment of the Geometry
