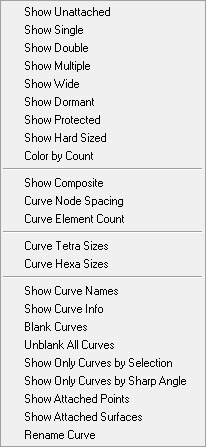

Shows the curves that are not attached to any of the geometry.

Shows all the curves that are attached to only one surface.

Shows all the curves that are shared by two surfaces.

Shows all the curves that are shared by more than two surfaces.

Displays line data with thicker lines, to help distinguish between geometry and mesh.

Shows all the dormant curves which are not permanently deleted.

If enabled, soft protected curves will be displayed as a dotted line; hard protected curves will be displayed as a bold dashed line.

If enabled, hard sized curves will be displayed as a non-bold, dashed line.

Colors curves by the number of surfaces the curve is associated with. This option works only after CAD repair. See Repair Geometry.

Displays the existing composite curves with different colors. Blocking must be loaded for this option. Composite curves are curves that are grouped together for the purpose of edge association. See Blocking > Associate > Group/Ungroup curves.

Displays a preview of the node spacing on curves.

Displays the number of elements prescribed on each curve.

Displays a tetra icon sized to indicate the tetra sizes that are set (if any) on each visible curve.

Displays a hexa icon sized to indicate the hexa sizes that are set (if any) on each visible curve.

Displays the names of the visible curves.

Gives information about a selected curve, including the curve and part names.

To employ this option, select Curves > Show Curve Info. Proceed to select a curve with the left mouse button and accept the selection with the middle mouse button. Information on the curve(s) will be listed in the Messages window.

Blanks all the selected curves.

Restores blanked curves.

Shows only selected curves on the screen and keeps others invisible.

Shows only curve pairs with angle of intersection less than specified limit.

Shows all the points which are attached to the selected curve.

Shows the surfaces which are attached to the selected curve.

You can rename the selected curves.
