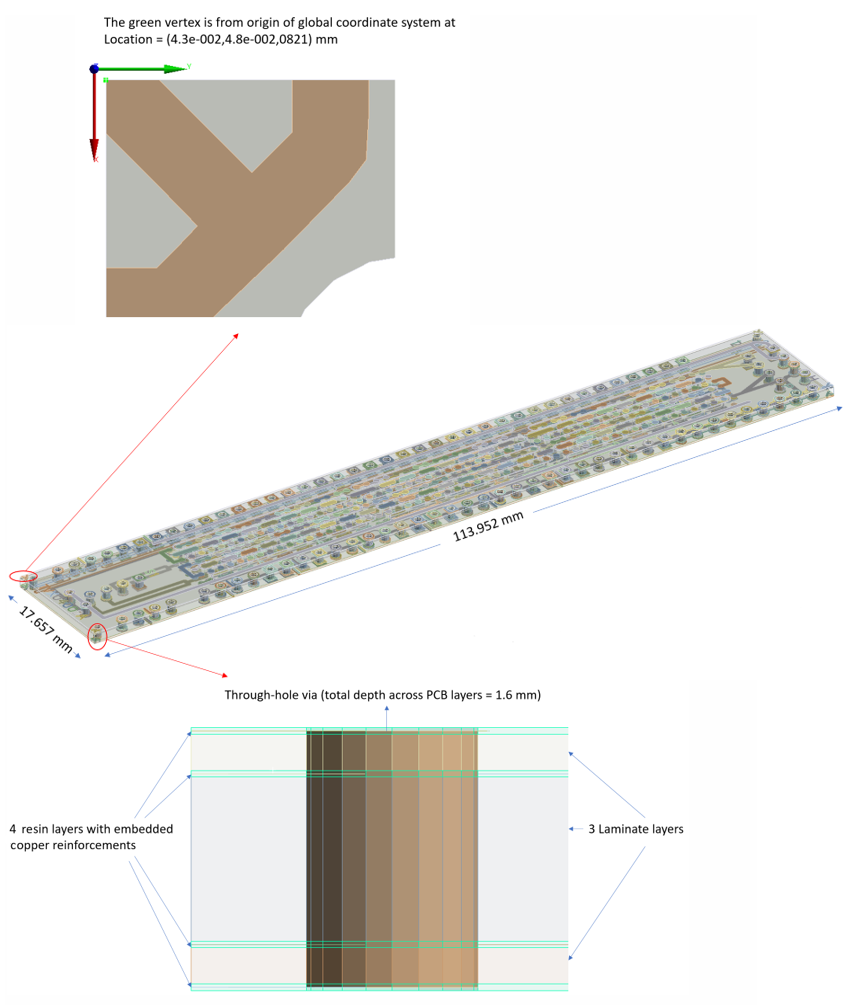

The following figure shows the geometry and layer details of a PCB with magnified details at the two corners circled in red:

Figure 59.1: PCB model

The analysis occurs in two parts:

Heat generation on some embedded metal traces due to operational loading can cause temperature gradients across the PCB. The gradients can result in PCB deformation during operation and induce thermal stresses and strains.
