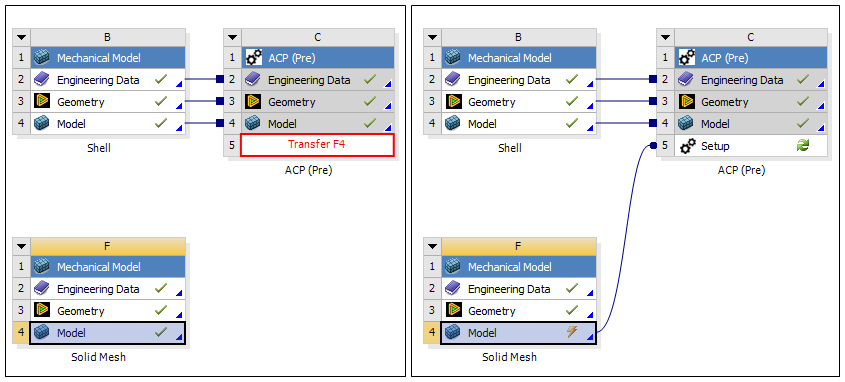

The solid mesh is passed to the ACP (Pre) system by transferring F4 to C5. (Simply drag-and-drop F4 onto C5.) This connection will create an Imported Solid Model object in ACP (Pre) which contains the solid mesh and Named Selections.

Figure 4.35: Mesh Features and Solid Mesh with the Inflation Layers and Roving Cross Section
