UDPs for Other Machine Parts

RMxprt includes UDPs to add various other types of machine parts. These include

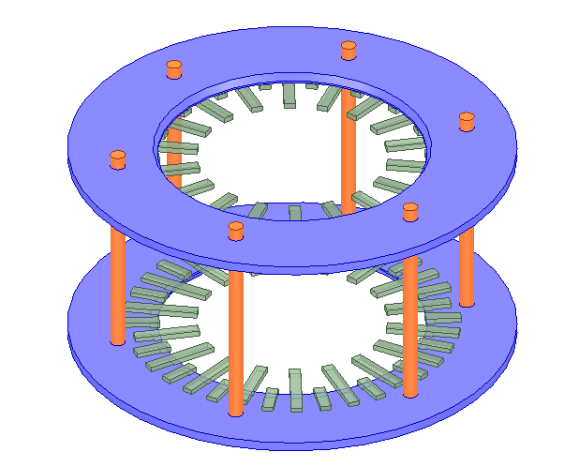

• PressPlate UDP - used to add press plates, fingers, and stems that are used to hold together the stack of core laminations in large AC and DC machines.

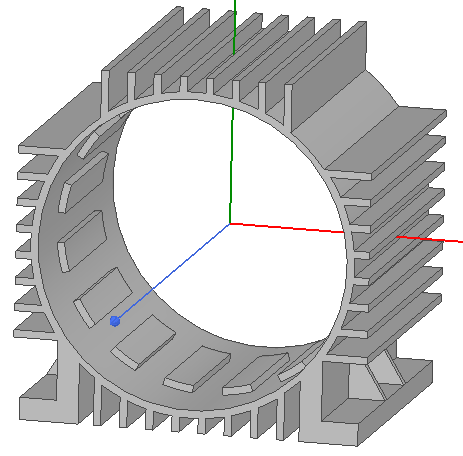

• Housing UDP - used to add machine housings and their associated fins, cooling ducts, and support feet.

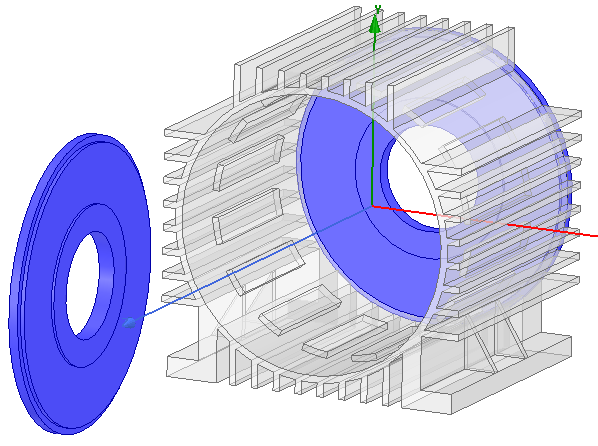

• EndCap UDP - used to add the end caps and associated bearing surfaces for a housing.
