Housing UDP
The Housing UDP is used to create the housing parts for machines. These include the fins, cooling ducts, and feet that support machines.
| Property | Description |
|---|---|
| DiaOuter | Housing outer diameter |
| DiaInner | Housing inner diameter |
| WidOverall | Housing overall width |
| Length | Housing length |
| Fins | Number of fins; Fins = 0 for uniform distribution |
| FinType | 1: radial round; 2: radial square; 3: parallel round; 4: parallel square; 5: squre ring; 6: servo ring |
| RatioCutout | Corner cutout ratio for FinType≠5 |
| DepthCutout | Corner cutout depth for FinType≠5; min fin depth for FinType=5 |
| ThickFin | Fin thickness |
| Ducts | Number of ducts |
| DuctType | 1: axial wind duct; 2: axial water jacket; 3: spiral water jacket (see below) |
| HeightDuct | Duct height in radial direction |
| EmbraceDuct |
Ratio of the duct span, or duct width, to duct pitch 0 < EmbraceDuct < 1 |
| LengthDuct | Axial duct length for axial wind ducts only |
| SegAngle | Deviation angle for spiral water jacket; 0 for true-surface circular jacket |
| WidthFoot | Foot width at the junction with housing |
| LengthFoot | Foot end-to-end length in axial direction |
| DistFoot | Distance between two feet |
| DistAxial | Foot distance in axial direction |
| WidthPalm | Palm width at the junction with base plate |
| HeightPalm | Palm Height |
| LengthPalm | Palm length in axial direction |
| HeightShaft | Shaft-center Height from palm bottom |
| FootRibs | Number of reinforcing ribs for foot and palm |
| ThickRib | Reinforcing-rib thickness |
| PitchRib | Pitch between two reinforcing ribs |
| OffsetFoot | Axial offset of foot center to housing center (not currently used) |
| OffsetPalm | Axial offset of palm center to housing center (not currently used) |
| InfoPart | 0: housing; 100: ducts |

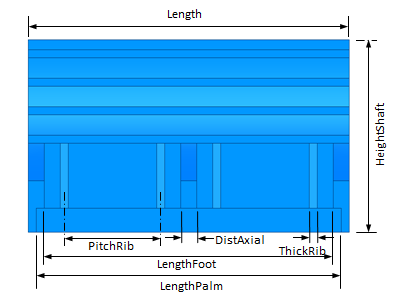

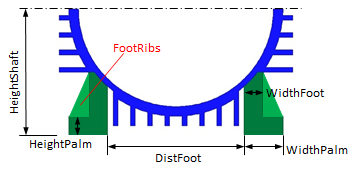

These parameters are shown in the following 2D examples:

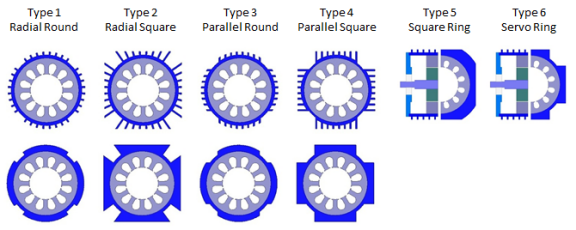

Housing FinType

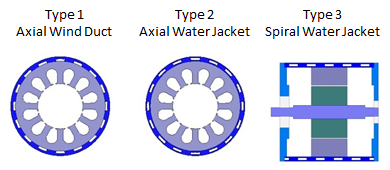

Housing DuctType
