EndCap UDP
The EndCap UDP is to used to add the end caps, bearing surfaces, and rectangular cooling plate for a housing.
|
Property |
Description |
| DiaHousing | Housing rabbet inner diameter |
| LenHousing | Housing axial length |
| DiaCap | End cap outer diameter |
| LenCap | Axial length, or thickness, of end cap |
| LenExt | Length from housing end to cap inner surface, <0 for rabbet length |
| DiaHolder | Outer diameter of bearing holder |
| DiaBearing | Bearing outer diameter |
| LenBearing | Bearing axial length |
| DiaShaft | Shaft diameter, or bearing inner diameter |
| DiaFlange | Diameter of the flange section that covers the front bearing |
| ThickFlange | Thickness of the flange section that covers the front bearing |
| HeightPlate | Height of the rectangular cooling plate |
| WidthPlate | Width of the rectangular cooling plate |
| ThickPlate | Thickness of the rectangular cooling plate |
| InfoPart | 0: front cap; 1: back cap; 2: front bearing; 3: back bearing; 4: flange. |

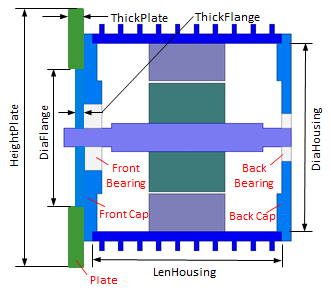

These parameters are shown in the following 2D example:
