Limit Lines in Cartesian Plots

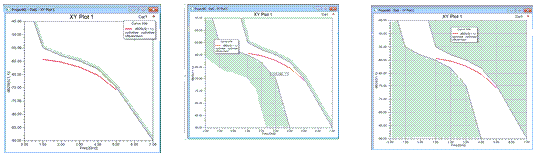

Limit lines are simple graphical representations of constraints on XY plots. These are modeled as a sequence of XY point pairs. For example, you can designate a single limit line to delineate either an upper or lower limit, or two limit lines to delineate upper and lower limits. You can add as many limit lines as you want. You can control the display properties of the line including color and hatch width.
You can create limit lines in the following ways:
Note: Limit lines are
available only on Rectangular (XY) plots - not on XY-like plots such
as Bode, Rectangular Stacked, etc.)
