Importing Network Solution Data

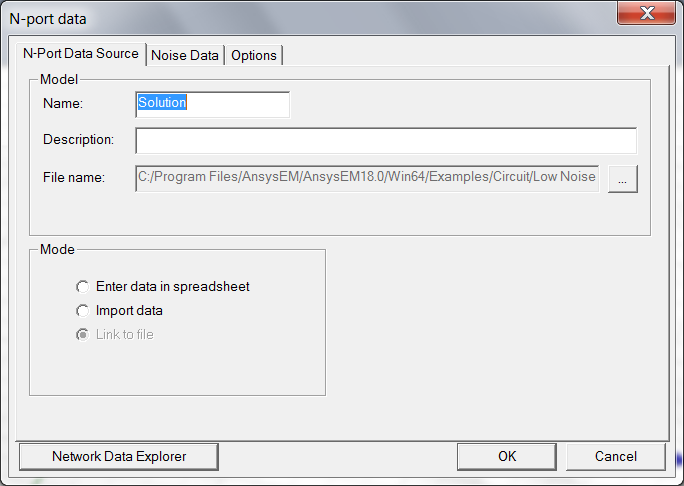

If the solution to be imported is network data such as S-parameters, click Network Data on the Import Solution window. Then click OK to open the N-port data window.

The N-port data window has the following tabs:

N-Port Data Source Tab

Noise Data Tab

Options Tab
