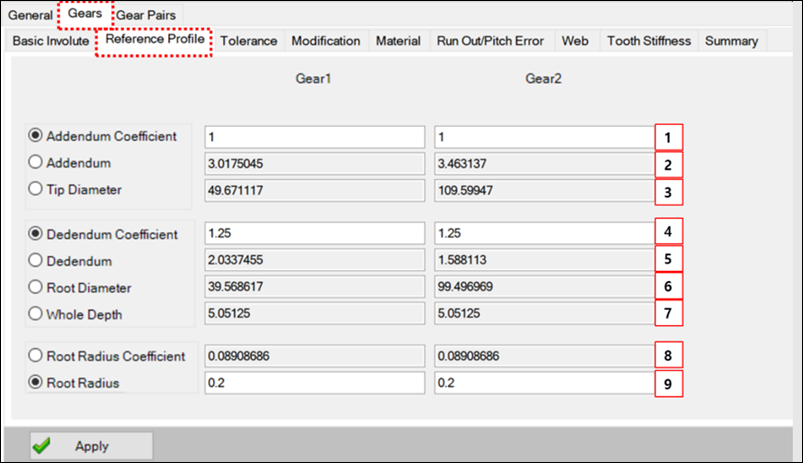

Figure 14.141: Parameters in the Reference Profile tab
| Parameter | Description |
Dimension (Range) |
| 1. Addendum Coefficient | Use to set the addendum coefficient. | N/A |
| 2. Addendum | Use to set the addendum directly. | Length |
| 3. Tip Diameter | Use to set the tip diameter directly. | Length |
| 4. Dedendum Coefficient | Use to set the dedendum coefficient. | N/A |
| 5. Dedendum | Use to set the dedendum directly. | Length |
| 6. Root Diameter | Use to set the root diameter directly. | Length |
| 7. Whole Depth | Use to set the tooth depth directly. | Length |
| 8. Root Radius Coefficient | Use to set the root radius coefficient. | N/A |
| 9. Root Radius | Use to set the tool tip radius. This value is related to the radius of trochoid curve. | Length |
